Tutorial 11: Data API Builder for Data Mesh Sharing¶

Estimated Time: 90 minutes | Path: F (Platform Operations) | Prerequisites: Azure subscription, SQL Server

graph LR
    subgraph "Data Layer"
        SQL[(Azure SQL)]
    end
    subgraph "API Layer"
        SQL --> DAB[Data API Builder]
        DAB --> REST[REST /api/*]
        DAB --> GQL[GraphQL /graphql]
    end
    subgraph "Gateway"
        REST --> APIM[API Management]
        GQL --> APIM
    end
    subgraph "Consumers"
        APIM --> FE[Frontend SWA]
        APIM --> PBI[Power BI]
        APIM --> EXT[External Apps]
    end

What You'll Build¶

A complete data-sharing layer using Azure Data API Builder (DAB) that turns your SQL database into instant REST and GraphQL APIs — no backend code required. By the end of this tutorial you will have:

• An Azure SQL database with a data-product catalog schema
• A Data API Builder instance exposing REST and GraphQL endpoints
• Role-based permissions (anonymous read, authenticated CRUD, admin full access)
• Entity relationships and stored-procedure endpoints
• A Static Web App frontend for browsing products and running GraphQL queries
• An API Management integration for enterprise governance

Why Data API Builder?¶

In a Data Mesh architecture each domain team owns and publishes its data products. DAB eliminates the need for each team to build custom APIs — they define a JSON configuration and DAB generates the API automatically:

Prerequisites¶

Environment Setup¶

# Login to Azure
az login

# Set subscription
az account set --subscription "<YOUR_SUBSCRIPTION_ID>"

# Create resource group
az group create --name rg-csa-dab-dev --location usgovvirginia

Step 1: Deploy Infrastructure¶

The Bicep module at deploy/bicep/DLZ/modules/data-api-builder.bicep provisions:

Deploy¶

az deployment group create \
  --resource-group rg-csa-dab-dev \
  --template-file deploy/bicep/DLZ/modules/data-api-builder.bicep \
  --parameters deploy/bicep/DLZ/modules/data-api-builder.dev.bicepparam \
  --parameters sqlAdminPassword='<STRONG_PASSWORD_HERE>'

Key Parameters¶

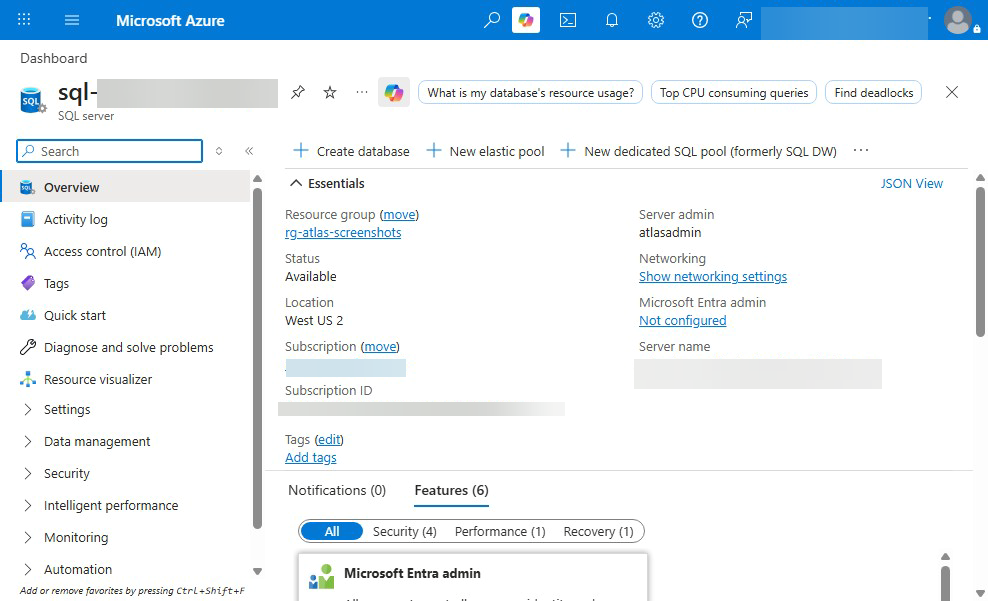

Verify Deployment¶

# Get outputs
az deployment group show \
  --resource-group rg-csa-dab-dev \
  --name data-api-builder \
  --query properties.outputs

# Test SQL connectivity
sqlcmd -S <sqlServerFqdn> -d csa-dab-db-dev -U sqladmin -P '<PASSWORD>' -Q "SELECT 1"

Step 2: Create the Database Schema¶

The schema lives in examples/data-api-builder/sql/setup.sql. It creates five tables that model a data-product catalog:

erDiagram
    Domains ||--o{ DataProducts : "has many"
    DataProducts ||--o{ QualityMetrics : "tracked by"
    DataProducts ||--o{ AccessGrants : "governed by"
    DataProducts ||--o{ DataLineage : "source of"
    DataProducts ||--o{ DataLineage : "target of"

    Domains {
        int id PK
        nvarchar name UK
        nvarchar description
        nvarchar owner_team
        int product_count
    }

    DataProducts {
        int id PK
        nvarchar name
        nvarchar description
        nvarchar domain FK
        nvarchar owner_name
        nvarchar owner_email
        nvarchar owner_team
        nvarchar classification
        decimal quality_score
        int freshness_hours
        decimal completeness
        decimal availability
        nvarchar status
        int version
    }

    QualityMetrics {
        int id PK
        int product_id FK
        date date
        decimal quality_score
        decimal completeness
        int freshness_hours
        bigint row_count
        decimal accuracy
        decimal consistency
    }

    AccessGrants {
        int id PK
        int product_id FK
        nvarchar requester_email
        nvarchar access_level
        nvarchar status
        nvarchar justification
        datetime2 granted_at
        datetime2 expires_at
    }

    DataLineage {
        int id PK
        int source_product_id FK
        int target_product_id FK
        nvarchar transformation
        nvarchar pipeline_name
    }

Run the Schema Script¶

sqlcmd -S <server>.database.windows.net \
  -d csa-dab-db-dev \
  -U sqladmin -P '<PASSWORD>' \
  -i examples/data-api-builder/sql/setup.sql

What Gets Created¶

Tables:

• Domains — organizational domains (finance, operations, marketing, hr)
• DataProducts — the data products published by each domain
• QualityMetrics — daily quality measurements per product
• AccessGrants — access request and approval tracking
• DataLineage — source-to-target transformation lineage

Stored Procedures:

• sp_domain_stats — aggregate statistics per domain
• sp_quality_trend — quality score trend for a product over N days

Seed Data:

• 4 domains, 5 data products, 30 quality metric records, 3 access grants

Verify¶

sqlcmd -S <server>.database.windows.net -d csa-dab-db-dev \
  -U sqladmin -P '<PASSWORD>' \
  -Q "SELECT name, domain, quality_score, status FROM dbo.DataProducts"

Step 3: Configure Data API Builder¶

The configuration file examples/data-api-builder/dab-config.json is the heart of DAB. It tells DAB which tables to expose, what permissions to enforce, and how entities relate to each other.

Configuration Structure¶

dab-config.json
├── data-source          → Database connection
├── runtime
│   ├── rest             → REST endpoint settings (/api)
│   ├── graphql          → GraphQL endpoint settings (/graphql)
│   └── host             → CORS, authentication, mode
└── entities
    ├── DataProducts     → Full CRUD, role-based
    ├── QualityMetrics   → Read-only (admin write)
    ├── AccessGrants     → Row-level security
    ├── Domains          → Read for all
    ├── DataLineage      → Read for authenticated
    ├── DomainStats      → Stored procedure
    └── QualityTrend     → Stored procedure

3.1 Data Source¶

"data-source": {
  "database-type": "mssql",
  "connection-string": "@env('SQL_CONNECTION_STRING')",
  "options": {
    "set-session-context": true
  }
}

The @env() syntax reads the connection string from an environment variable. set-session-context passes the authenticated user's claims to SQL Server via SESSION_CONTEXT, enabling row-level security in the database.

3.2 Runtime Settings¶

"runtime": {
  "rest": { "enabled": true, "path": "/api" },
  "graphql": { "enabled": true, "path": "/graphql", "allow-introspection": true },
  "host": {
    "cors": { "origins": ["http://localhost:4280", "https://*.azurestaticapps.net"] },
    "authentication": { "provider": "StaticWebApps" },
    "mode": "production"
  }
}

3.3 Entity Configuration — DataProducts Example¶

"DataProducts": {
  "source": { "object": "dbo.DataProducts", "type": "table" },
  "graphql": {
    "type": { "singular": "DataProduct", "plural": "DataProducts" }
  },
  "rest": { "path": "/products" },
  "permissions": [
    {
      "role": "anonymous",
      "actions": [{
        "action": "read",
        "fields": {
          "include": ["id", "name", "description", "domain", "quality_score", "status"],
          "exclude": ["owner_email"]
        },
        "policy": { "database": "@item.status ne 'draft'" }
      }]
    },
    {
      "role": "authenticated",
      "actions": [
        { "action": "read" },
        { "action": "create", "fields": { "exclude": ["id", "created_at", "updated_at"] } },
        { "action": "update", "fields": { "exclude": ["id", "created_at"] } }
      ]
    },
    { "role": "admin", "actions": [{ "action": "*" }] }
  ],
  "relationships": {
    "qualityMetrics": {
      "cardinality": "many",
      "target.entity": "QualityMetrics",
      "source.fields": ["id"],
      "target.fields": ["product_id"]
    },
    "domain_info": {
      "cardinality": "one",
      "target.entity": "Domains",
      "source.fields": ["domain"],
      "target.fields": ["name"]
    }
  }
}

3.4 How to ADD a New Entity¶

To share a new table through DAB, add an entry to the entities section:

"NewEntity": {
  "source": { "object": "dbo.YourTable", "type": "table" },
  "graphql": { "enabled": true, "type": { "singular": "NewEntity", "plural": "NewEntities" } },
  "rest": { "enabled": true, "path": "/new-entities" },
  "permissions": [
    { "role": "anonymous", "actions": [{ "action": "read" }] }
  ]
}

Then restart DAB — no code changes needed.

3.5 How to REMOVE an Entity¶

Delete the entity block from dab-config.json and restart. The table remains in the database; only the API endpoint is removed.

3.6 How to Change PERMISSIONS¶

Permissions are per-role, per-action. Common patterns:

// Read-only for everyone
{ "role": "anonymous", "actions": [{ "action": "read" }] }

// Read-write for authenticated users
{ "role": "authenticated", "actions": [
  { "action": "read" },
  { "action": "create" },
  { "action": "update" }
]}

// Full access for admin
{ "role": "admin", "actions": [{ "action": "*" }] }

// Row-level security — users see only their own rows
{ "role": "authenticated", "actions": [{
  "action": "read",
  "policy": { "database": "@claims.email eq @item.owner_email" }
}]}

// Field restrictions — hide sensitive columns
{ "role": "anonymous", "actions": [{
  "action": "read",
  "fields": { "exclude": ["owner_email", "classification"] }
}]}

3.7 How to Add RELATIONSHIPS¶

Relationships enable nested queries in GraphQL. Add them to the source entity's relationships block:

// One-to-many: Product has many QualityMetrics
"qualityMetrics": {
  "cardinality": "many",
  "target.entity": "QualityMetrics",
  "source.fields": ["id"],
  "target.fields": ["product_id"]
}

// Many-to-one: Product belongs to a Domain
"domain_info": {
  "cardinality": "one",
  "target.entity": "Domains",
  "source.fields": ["domain"],
  "target.fields": ["name"]
}

Run DAB Locally¶

export SQL_CONNECTION_STRING="Server=tcp:<server>.database.windows.net,1433;Database=csa-dab-db-dev;User ID=sqladmin;Password=<PWD>;Encrypt=true;TrustServerCertificate=false;"

dab start --config examples/data-api-builder/dab-config.json

DAB starts on http://localhost:5000. You should see:

info: Azure.DataApiBuilder[0]
      REST path: /api
      GraphQL path: /graphql
      Listening on: http://localhost:5000

Step 4: REST API Examples¶

DAB automatically generates REST endpoints for every entity. The base path is /api followed by the entity's rest.path.

GET — All Products¶

curl http://localhost:5000/api/products | jq

Response:

{
    "value": [
        {
            "id": 1,
            "name": "Revenue Summary",
            "domain": "finance",
            "quality_score": 92.5,
            "status": "active"
        }
    ]
}

GET — Single Product by ID¶

curl http://localhost:5000/api/products/id/1 | jq

GET — Filter by Domain¶

curl "http://localhost:5000/api/products?\$filter=domain eq 'finance'" | jq

GET — Sort by Quality Score¶

curl "http://localhost:5000/api/products?\$orderby=quality_score desc" | jq

GET — Pagination¶

# First page (10 items)
curl "http://localhost:5000/api/products?\$first=10" | jq

# Next page using cursor
curl "http://localhost:5000/api/products?\$first=10&\$after=<nextLink_cursor>" | jq

GET — Combined Filters¶

curl "http://localhost:5000/api/products?\$filter=domain eq 'finance' and status eq 'active'&\$orderby=quality_score desc&\$first=5" | jq

POST — Create a Product¶

curl -X POST http://localhost:5000/api/products \
  -H "Content-Type: application/json" \
  -H "X-MS-API-ROLE: authenticated" \
  -d '{
    "name": "Customer Segments",
    "description": "Customer segmentation by purchase behavior",
    "domain": "marketing",
    "owner_name": "Dan Wilson",
    "owner_email": "dan@contoso.com",
    "owner_team": "Marketing Insights",
    "classification": "internal",
    "quality_score": 82.5,
    "freshness_hours": 24,
    "completeness": 90.0,
    "status": "draft",
    "version": 1
  }'

PUT — Update a Product¶

curl -X PUT http://localhost:5000/api/products/id/1 \
  -H "Content-Type: application/json" \
  -H "X-MS-API-ROLE: authenticated" \
  -d '{
    "quality_score": 93.0,
    "version": 3
  }'

DELETE — Remove a Product¶

curl -X DELETE http://localhost:5000/api/products/id/99 \
  -H "X-MS-API-ROLE: admin"

Stored Procedure — Domain Stats¶

curl http://localhost:5000/api/domain-stats | jq

Stored Procedure — Quality Trend¶

curl "http://localhost:5000/api/quality-trend?product_id=1&days=30" | jq

Tip: Open examples/data-api-builder/api-examples/rest-examples.http in VS Code with the REST Client extension to run all these interactively.

Step 5: GraphQL API Examples¶

DAB exposes a GraphQL endpoint at /graphql with full introspection support.

Query — All Products (Paginated)¶

{
    dataProducts(first: 10) {
        items {
            id
            name
            domain
            quality_score
            status
        }
        hasNextPage
        endCursor
    }
}

curl -X POST http://localhost:5000/graphql \
  -H "Content-Type: application/json" \
  -d '{"query":"{ dataProducts(first: 10) { items { id name domain quality_score status } hasNextPage endCursor } }"}'

Query — Product with Nested Quality Metrics¶

{
    dataProduct_by_pk(id: 1) {
        name
        domain
        quality_score
        qualityMetrics {
            items {
                date
                quality_score
                completeness
                accuracy
            }
        }
        domain_info {
            name
            owner_team
            product_count
        }
    }
}

This demonstrates the power of DAB relationships — a single query fetches the product, its quality history, and its domain details without any custom resolver code.

Query — Filter by Domain¶

{
    dataProducts(
        filter: { domain: { eq: "finance" }, status: { eq: "active" } }
    ) {
        items {
            id
            name
            quality_score
            owner_team
        }
    }
}

Mutation — Create a Product¶

mutation {
    createDataProduct(
        item: {
            name: "Customer Lifetime Value"
            description: "Predicted CLV by customer segment"
            domain: "marketing"
            owner_name: "Dan Wilson"
            owner_email: "dan@contoso.com"
            owner_team: "Marketing Insights"
            classification: "confidential"
            quality_score: 85.0
            freshness_hours: 48
            completeness: 92.0
            status: "draft"
            version: 1
        }
    ) {
        id
        name
        status
    }
}

Mutation — Update a Product¶

mutation {
    updateDataProduct(id: 1, item: { quality_score: 94.2, version: 3 }) {
        id
        name
        quality_score
        version
    }
}

Subscriptions¶

DAB does not natively support GraphQL subscriptions. For real-time updates, consider:

• Polling the GraphQL endpoint on an interval
• Using Azure SignalR Service alongside DAB
• Azure SQL change tracking with Azure Functions pushing events

Reference: See examples/data-api-builder/api-examples/graphql-examples.graphql for the complete query collection.

Step 6: Build the Frontend¶

The frontend is a static site in examples/data-api-builder/frontend/ that connects directly to DAB's REST and GraphQL endpoints.

Architecture¶

frontend/
├── index.html               ← Dashboard with stats cards
├── products.html             ← Searchable product catalog
├── explorer.html             ← GraphQL query editor
├── styles.css                ← Dark theme (slate-900 + cyan/emerald)
├── app.js                    ← API client + DOM rendering
└── staticwebapp.config.json  ← SWA routing + auth config

6.1 Dashboard (index.html)¶

The dashboard loads on page init and calls api.fetchStats() which makes parallel requests to /api/products and /api/domains, then computes:

• Total Products — count of all products
• Avg Quality Score — mean quality_score across products
• Active Domains — domains with product_count > 0
• Pending Requests — (placeholder for access-grant integration)

6.2 Product Catalog (products.html)¶

Features:

• Search — filters by product name using contains(name, 'term')
• Domain Filter — dropdown populated from /api/domains
• Sortable — products ordered by quality_score desc
• Detail Panel — click a row to see full details + quality history

The search and filter controls use a 300ms debounce to avoid excessive API calls.

6.3 GraphQL Explorer (explorer.html)¶

A simple in-browser GraphQL editor with:

• Query textarea with monospace font
• Example query dropdown — pre-loaded queries for common operations
• Execute button — sends POST to /graphql and renders JSON result
• Type reference — shows available types and their fields

6.4 API Client (app.js)¶

The DabApiClient class encapsulates all API interactions:

const api = new DabApiClient("/data-api");

// REST calls
const products = await api.fetchProducts({
    domain: "finance",
    orderBy: "quality_score desc",
});
const product = await api.fetchProduct(1);
const domains = await api.fetchDomains();
const stats = await api.fetchDomainStats();
const trend = await api.fetchQualityTrend(1, 30);

// GraphQL
const result = await api.executeGraphQL(
    "{ dataProducts { items { id name } } }",
);

Run Locally¶

# Install SWA CLI
npm install -g @azure/static-web-apps-cli

# Start DAB in one terminal
dab start --config examples/data-api-builder/dab-config.json

# Start SWA in another terminal (proxies /data-api to DAB)
swa start examples/data-api-builder/frontend \
  --data-api-location http://localhost:5000

Open http://localhost:4280 in your browser.

Deploy to Azure Static Web Apps¶

swa deploy examples/data-api-builder/frontend \
  --deployment-token <SWA_DEPLOYMENT_TOKEN> \
  --env production

Step 7: Integrate with API Management¶

For enterprise governance, import DAB's APIs into Azure API Management.

7.1 Import REST API¶

# Get DAB endpoint from deployment outputs
DAB_URL=$(az deployment group show \
  --resource-group rg-csa-dab-dev \
  --name data-api-builder \
  --query properties.outputs.dabEndpoint.value -o tsv)

# Import into APIM
az apim api import \
  --resource-group rg-csa-dab-dev \
  --service-name csa-dab-apim-dev \
  --path "data-products" \
  --api-id "data-products-api" \
  --display-name "Data Products API" \
  --service-url "$DAB_URL/api" \
  --protocols https \
  --specification-format OpenAPI \
  --specification-url "$DAB_URL/api/openapi"

7.2 Add Subscription Key Requirement¶

az apim api update \
  --resource-group rg-csa-dab-dev \
  --service-name csa-dab-apim-dev \
  --api-id data-products-api \
  --subscription-required true

7.3 Add Rate Limiting Policy¶

<policies>
  <inbound>
    <base />
    <rate-limit calls="100" renewal-period="60" />
    <validate-jwt header-name="Authorization"
                  failed-validation-httpcode="401"
                  failed-validation-error-message="Unauthorized">
      <openid-config url="https://login.microsoftonline.com/{tenant}/v2.0/.well-known/openid-configuration" />
      <required-claims>
        <claim name="aud"><value>{client_id}</value></claim>
      </required-claims>
    </validate-jwt>
  </inbound>
</policies>

7.4 Test Through APIM¶

APIM_URL="https://csa-dab-apim-dev.azure-api.net/data-products"
APIM_KEY="<YOUR_SUBSCRIPTION_KEY>"

curl -H "Ocp-Apim-Subscription-Key: $APIM_KEY" "$APIM_URL/products" | jq

Step 8: Data Mesh Patterns¶

DAB is a natural fit for Data Mesh because it lets each domain team independently publish data products as APIs without writing backend code.

8.1 Domain Ownership¶

Each domain team manages its own dab-config.json:

finance-team/
└── dab-config.json     ← Revenue, Budget, Forecast entities

operations-team/
└── dab-config.json     ← Shipments, Inventory, Logistics entities

marketing-team/
└── dab-config.json     ← Campaigns, Segments, Engagement entities

Teams add or remove entities by editing their config — no dependency on a central platform team.

8.2 Self-Serve Infrastructure¶

The Bicep module enables self-service provisioning:

# Each domain team deploys their own DAB instance
az deployment group create \
  --resource-group rg-finance-data \
  --template-file deploy/bicep/DLZ/modules/data-api-builder.bicep \
  --parameters namePrefix='finance-dab' environment='dev' \
  --parameters sqlAdminPassword='<PWD>'

8.3 Federated Governance¶

API Management enforces cross-domain policies centrally:

Domain teams own their DAB configs (data products); the platform team owns APIM policies (governance).

8.4 Data Product as API¶

Each shared dataset becomes a discoverable API endpoint:

https://apim.contoso.com/finance/products          ← Revenue data
https://apim.contoso.com/operations/products        ← Shipment data
https://apim.contoso.com/marketing/products         ← Campaign data

Consumers discover products through the APIM developer portal, request access, and start consuming immediately through REST or GraphQL.

8.5 Quality Observability¶

The QualityMetrics table and sp_quality_trend stored procedure provide built-in quality observability:

# Quality dashboard for any product
curl "https://apim.contoso.com/data-products/quality-trend?product_id=1&days=90"

# Domain-level quality summary
curl "https://apim.contoso.com/data-products/domain-stats"

Troubleshooting¶

DAB won't start¶

Common REST errors¶

GraphQL issues¶

• Introspection disabled: Set allow-introspection: true in config
• Relationship returns null: Verify source.fields and target.fields match FK columns
• Permission denied: Add the role to the target entity's permissions too

Azure deployment issues¶

# Check Container App logs
az containerapp logs show \
  --name csa-dab-app-dev \
  --resource-group rg-csa-dab-dev \
  --follow

# Check SQL connectivity from Container App
az containerapp exec \
  --name csa-dab-app-dev \
  --resource-group rg-csa-dab-dev \
  --command "curl -v telnet://<sql-server>:1433"

Next Steps¶

1. Add your own entities — Follow Step 3.4 to expose your domain's tables
2. Enable Microsoft Entra ID authentication — Replace StaticWebApps provider with AzureAD in dab-config.json
3. Set up CI/CD — Add GitHub Actions to deploy config changes automatically
4. Connect Power BI — Use the REST endpoint as a Power BI data source
5. Add data lineage — Populate the DataLineage table to track transformations
6. Scale for production — Deploy with data-api-builder.prod.bicepparam for HA and security
7. Explore Tutorial 10 — See how DAB integrates with the broader Data Marketplace

Reference¶
