Tutorial 01: Foundation Platform¶

Estimated Time: 3-4 hours Difficulty: Intermediate

Deploy the complete CSA-in-a-Box foundation: Azure Landing Zone (ALZ), Data Management Landing Zone (DMLZ), and Data Landing Zone (DLZ). By the end, you will have a fully functional data platform with storage, Databricks, Synapse, and Data Factory — and you will run a real end-to-end dbt pipeline using USDA open data through Bronze → Silver → Gold.

Prerequisites¶

Before starting, ensure you have the following installed and configured:

• Azure subscription with Contributor (or Owner) role at the subscription level
• Azure CLI 2.50 or later — Install guide
• Bicep CLI 0.22+ (bundled with recent Azure CLI; verify with az bicep version)
• Python 3.11 or later — python.org
• Git — git-scm.com
• dbt-core with dbt-databricks adapter — installed in Step 10
• (Optional) Power BI Desktop for Step 12

Verify your tools:

az version --output table
az bicep version
python --version
git --version

Architecture Diagram¶

graph TB
    subgraph ALZ["Azure Landing Zone (ALZ)"]
        LOG[Log Analytics]
        POLICY[Azure Policy]
        NET_HUB[Hub VNet]
    end

    subgraph DMLZ["Data Management Landing Zone (DMLZ)"]
        PURVIEW[Microsoft Purview]
        KV_MGMT[Key Vault]
        ACR[Container Registry]
    end

    subgraph DLZ["Data Landing Zone (DLZ)"]
        subgraph Storage["Storage Account"]
            BRONZE[Bronze Container]
            SILVER[Silver Container]
            GOLD[Gold Container]
        end
        DBX[Databricks Workspace]
        SYN[Synapse Analytics]
        ADF[Data Factory]
        EH[Event Hubs]
        KV_DLZ[Key Vault]
        NET_DLZ[Spoke VNet]
    end

    NET_HUB -- VNet Peering --- NET_DLZ
    ADF --> BRONZE
    DBX --> BRONZE
    DBX --> SILVER
    DBX --> GOLD
    SYN --> GOLD
    PURVIEW -. catalog .-> Storage
    PURVIEW -. catalog .-> DBX
    LOG -. diagnostics .-> DLZ

    style ALZ fill:#e6f0ff,stroke:#0078d4
    style DMLZ fill:#f0e6ff,stroke:#5c2d91
    style DLZ fill:#e6ffe6,stroke:#107c10

Step 1: Clone the Repository and Set Up Your Workspace¶

Clone the CSA-in-a-Box repo and navigate to the project root.

git clone https://github.com/your-org/csa-inabox.git
cd csa-inabox

Create a Python virtual environment for tooling used later in the tutorial:

python -m venv .venv
# Linux / macOS
source .venv/bin/activate
# Windows PowerShell
# .venv\Scripts\Activate.ps1

pip install --upgrade pip

Cloning into 'csa-inabox'...
remote: Enumerating objects: ...
...
Successfully installed pip-24.x

Troubleshooting¶

Step 2: Configure Your Azure Environment¶

Log in to Azure and select your target subscription.

# Interactive login (opens browser)
az login

# List subscriptions
az account list --output table

# Set the subscription you want to use
az account set --subscription "<YOUR_SUBSCRIPTION_ID>"

# Verify
az account show --query "{Name:name, ID:id, State:state}" --output table

Register the resource providers required by the platform:

az provider register --namespace Microsoft.Purview
az provider register --namespace Microsoft.Databricks
az provider register --namespace Microsoft.Synapse
az provider register --namespace Microsoft.DataFactory
az provider register --namespace Microsoft.EventHub
az provider register --namespace Microsoft.ContainerRegistry

Define your naming convention. Throughout this tutorial, we use:

export CSA_PREFIX="csa"
export CSA_ENV="dev"
export CSA_LOCATION="eastus"
export CSA_RG_ALZ="${CSA_PREFIX}-rg-alz-${CSA_ENV}"
export CSA_RG_DMLZ="${CSA_PREFIX}-rg-dmlz-${CSA_ENV}"
export CSA_RG_DLZ="${CSA_PREFIX}-rg-dlz-${CSA_ENV}"

Create the resource groups:

az group create --name "$CSA_RG_ALZ"  --location "$CSA_LOCATION"
az group create --name "$CSA_RG_DMLZ" --location "$CSA_LOCATION"
az group create --name "$CSA_RG_DLZ"  --location "$CSA_LOCATION"

{
    "id": "/subscriptions/.../resourceGroups/csa-rg-alz-dev",
    "location": "eastus",
    "name": "csa-rg-alz-dev",
    "properties": {
        "provisioningState": "Succeeded"
    },
    "type": "Microsoft.Resources/resourceGroups"
}

Troubleshooting¶

Step 3: Deploy the Azure Landing Zone (ALZ)¶

The ALZ provides shared infrastructure: Log Analytics, Azure Policy assignments, and the hub virtual network.

cd deploy/bicep/landing-zone-alz

# Review the parameter file and customize values
cat params.dev.json

Edit params.dev.json to match your environment. Key parameters:

Deploy:

az deployment group create \
  --resource-group "$CSA_RG_ALZ" \
  --template-file main.bicep \
  --parameters @params.dev.json \
  --name "alz-foundation-$(date +%Y%m%d%H%M)" \
  --verbose

This typically takes 5-10 minutes. The deployment creates:

• Log Analytics workspace for centralized monitoring
• Azure Policy assignments for compliance guardrails
• Hub Virtual Network with subnets for management, firewall, and gateway

# Return to repo root
cd ../../..

{
  "id": "/subscriptions/.../providers/Microsoft.Resources/deployments/alz-foundation-...",
  "name": "alz-foundation-...",
  "properties": {
    "provisioningState": "Succeeded",
    "outputs": {
      "logAnalyticsWorkspaceId": { "value": "/subscriptions/.../Microsoft.OperationalInsights/workspaces/csa-law-dev" },
      "hubVnetId": { "value": "/subscriptions/.../Microsoft.Network/virtualNetworks/csa-vnet-hub-dev" }
    }
  }
}

Troubleshooting¶

Step 4: Deploy the Data Management Landing Zone (DMLZ)¶

The DMLZ hosts shared governance services: Microsoft Purview for data cataloging, a central Key Vault for secrets, and a Container Registry for custom images.

cd deploy/bicep/DMLZ

# Review parameters
cat params.dev.json

Key parameters to customize in params.dev.json:

Deploy:

az deployment group create \
  --resource-group "$CSA_RG_DMLZ" \
  --template-file main.bicep \
  --parameters @params.dev.json \
  --name "dmlz-deploy-$(date +%Y%m%d%H%M)" \
  --verbose

This takes 8-15 minutes (Purview provisioning is the longest step).

cd ../../..

{
  "properties": {
    "provisioningState": "Succeeded",
    "outputs": {
      "purviewAccountId": { "value": "/subscriptions/.../Microsoft.Purview/accounts/csa-purview-dev" },
      "keyVaultUri": { "value": "https://csa-kv-dmlz-dev.vault.azure.net/" },
      "containerRegistryLoginServer": { "value": "csaacrdmlzdev.azurecr.io" }
    }
  }
}

Troubleshooting¶

Step 5: Deploy the Data Landing Zone (DLZ)¶

The DLZ is where data lives and gets processed. This is the largest deployment, provisioning:

• Azure Data Lake Storage Gen2 with Bronze / Silver / Gold containers
• Azure Databricks workspace
• Azure Synapse Analytics workspace with serverless SQL
• Azure Data Factory for orchestration
• Azure Event Hubs namespace for streaming ingestion
• Spoke Virtual Network with NSGs and service endpoints

cd deploy/bicep/DLZ

# Review and customize parameters
cat params.dev.json

Key parameters in params.dev.json:

Deploy:

az deployment group create \
  --resource-group "$CSA_RG_DLZ" \
  --template-file main.bicep \
  --parameters @params.dev.json \
  --name "dlz-deploy-$(date +%Y%m%d%H%M)" \
  --verbose

This is the longest deployment: 15-25 minutes. Databricks and Synapse workspace provisioning take the most time.

cd ../../..

{
  "properties": {
    "provisioningState": "Succeeded",
    "outputs": {
      "storageAccountId": { "value": "/subscriptions/.../Microsoft.Storage/storageAccounts/csadlsdev" },
      "databricksWorkspaceUrl": { "value": "https://adb-1234567890.12.azuredatabricks.net" },
      "synapseWorkspaceUrl": { "value": "https://csa-syn-dev.dev.azuresynapse.net" },
      "dataFactoryId": { "value": "/subscriptions/.../Microsoft.DataFactory/factories/csa-adf-dev" }
    }
  }
}

Troubleshooting¶

Step 6: Configure Networking¶

Connect the hub and spoke networks so all services can communicate securely.

6a. VNet Peering¶

Peer the ALZ hub VNet with the DLZ spoke VNet:

# Get VNet resource IDs
HUB_VNET_ID=$(az network vnet list \
  --resource-group "$CSA_RG_ALZ" \
  --query "[0].id" -o tsv)

SPOKE_VNET_ID=$(az network vnet list \
  --resource-group "$CSA_RG_DLZ" \
  --query "[0].id" -o tsv)

HUB_VNET_NAME=$(az network vnet list \
  --resource-group "$CSA_RG_ALZ" \
  --query "[0].name" -o tsv)

SPOKE_VNET_NAME=$(az network vnet list \
  --resource-group "$CSA_RG_DLZ" \
  --query "[0].name" -o tsv)

# Create peering: Hub → Spoke
az network vnet peering create \
  --name "hub-to-dlz" \
  --resource-group "$CSA_RG_ALZ" \
  --vnet-name "$HUB_VNET_NAME" \
  --remote-vnet "$SPOKE_VNET_ID" \
  --allow-vnet-access \
  --allow-forwarded-traffic

# Create peering: Spoke → Hub
az network vnet peering create \
  --name "dlz-to-hub" \
  --resource-group "$CSA_RG_DLZ" \
  --vnet-name "$SPOKE_VNET_NAME" \
  --remote-vnet "$HUB_VNET_ID" \
  --allow-vnet-access \
  --allow-forwarded-traffic

6b. Private Endpoints (Optional for Dev)¶

For production, you should create private endpoints for Storage, Databricks, Synapse, and Key Vault. In a dev environment you can skip this step, but here is the pattern for Storage:

STORAGE_ACCT=$(az storage account list \
  --resource-group "$CSA_RG_DLZ" \
  --query "[0].name" -o tsv)

STORAGE_ID=$(az storage account show \
  --name "$STORAGE_ACCT" \
  --resource-group "$CSA_RG_DLZ" \
  --query "id" -o tsv)

SUBNET_ID=$(az network vnet subnet show \
  --resource-group "$CSA_RG_DLZ" \
  --vnet-name "$SPOKE_VNET_NAME" \
  --name "default" \
  --query "id" -o tsv)

az network private-endpoint create \
  --name "pe-${STORAGE_ACCT}-blob" \
  --resource-group "$CSA_RG_DLZ" \
  --vnet-name "$SPOKE_VNET_NAME" \
  --subnet "default" \
  --private-connection-resource-id "$STORAGE_ID" \
  --group-id blob \
  --connection-name "pe-conn-${STORAGE_ACCT}-blob"

6c. DNS Zones¶

If using private endpoints, create private DNS zones and link them:

az network private-dns zone create \
  --resource-group "$CSA_RG_DLZ" \
  --name "privatelink.blob.core.windows.net"

az network private-dns link vnet create \
  --resource-group "$CSA_RG_DLZ" \
  --zone-name "privatelink.blob.core.windows.net" \
  --name "dns-link-dlz" \
  --virtual-network "$SPOKE_VNET_ID" \
  --registration-enabled false

{
  "peeringState": "Connected",
  "provisioningState": "Succeeded"
}

Troubleshooting¶

Step 7: Set Up RBAC and Managed Identities¶

Grant the necessary role assignments so services can interact with each other.

7a. Get Managed Identity Principal IDs¶

# Databricks managed identity
DBX_PRINCIPAL=$(az databricks workspace show \
  --name "csa-dbx-dev" \
  --resource-group "$CSA_RG_DLZ" \
  --query "identity.principalId" -o tsv 2>/dev/null || \
  az resource list --resource-group "$CSA_RG_DLZ" \
    --resource-type "Microsoft.Databricks/workspaces" \
    --query "[0].identity.principalId" -o tsv)

# Data Factory managed identity
ADF_PRINCIPAL=$(az datafactory show \
  --name "csa-adf-dev" \
  --resource-group "$CSA_RG_DLZ" \
  --query "identity.principalId" -o tsv 2>/dev/null || \
  az resource list --resource-group "$CSA_RG_DLZ" \
    --resource-type "Microsoft.DataFactory/factories" \
    --query "[0].identity.principalId" -o tsv)

# Synapse managed identity
SYN_PRINCIPAL=$(az synapse workspace show \
  --name "csa-syn-dev" \
  --resource-group "$CSA_RG_DLZ" \
  --query "identity.principalId" -o tsv 2>/dev/null || \
  az resource list --resource-group "$CSA_RG_DLZ" \
    --resource-type "Microsoft.Synapse/workspaces" \
    --query "[0].identity.principalId" -o tsv)

echo "Databricks: $DBX_PRINCIPAL"
echo "Data Factory: $ADF_PRINCIPAL"
echo "Synapse: $SYN_PRINCIPAL"

7b. Assign Storage Blob Data Contributor¶

Grant each service access to the Data Lake:

STORAGE_ID=$(az storage account show \
  --name "$STORAGE_ACCT" \
  --resource-group "$CSA_RG_DLZ" \
  --query "id" -o tsv)

for PRINCIPAL in "$ADF_PRINCIPAL" "$SYN_PRINCIPAL"; do
  az role assignment create \
    --assignee "$PRINCIPAL" \
    --role "Storage Blob Data Contributor" \
    --scope "$STORAGE_ID"
done

7c. Grant Your User Access¶

Assign yourself Storage Blob Data Contributor so you can browse data in the portal and run queries:

CURRENT_USER=$(az ad signed-in-user show --query "id" -o tsv)

az role assignment create \
  --assignee "$CURRENT_USER" \
  --role "Storage Blob Data Contributor" \
  --scope "$STORAGE_ID"

{
    "principalId": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
    "roleDefinitionId": "/subscriptions/.../providers/Microsoft.Authorization/roleDefinitions/ba92f5b4-...",
    "scope": "/subscriptions/.../storageAccounts/csadlsdev"
}

Troubleshooting¶

Step 8: Deploy Databricks Workspace and Create a Cluster¶

The Databricks workspace was provisioned in Step 5. Now configure it with a compute cluster for running dbt and notebooks.

8a. Access the Workspace¶

DBX_URL=$(az databricks workspace list \
  --resource-group "$CSA_RG_DLZ" \
  --query "[0].workspaceUrl" -o tsv)

echo "Open Databricks at: https://$DBX_URL"

Open the URL in your browser and sign in with your Microsoft Entra ID credentials.

8b. Create a Personal Access Token¶

In the Databricks UI:

1. Click your username (top-right) → Settings
2. Go to Developer → Access tokens
3. Click Generate New Token
4. Description: csa-tutorial, Lifetime: 90 days
5. Copy the token — you will need it for dbt

# Store the token for later use
export DATABRICKS_TOKEN="<paste-your-token-here>"
export DATABRICKS_HOST="https://$DBX_URL"

8c. Create a Cluster¶

In the Databricks UI:

1. Go to Compute → Create compute
2. Configure:
   • Cluster name: csa-tutorial-cluster
   • Cluster mode: Single Node (for cost savings in dev)
   • Databricks Runtime: 14.3 LTS or later
   • Node type: Standard_DS3_v2 (or equivalent, 4 cores / 14 GB)
   • Terminate after: 30 minutes of inactivity
3. Click Create Compute

Alternatively, use the Databricks CLI:

pip install databricks-cli

databricks configure --token <<EOF
$DATABRICKS_HOST
$DATABRICKS_TOKEN
EOF

databricks clusters create --json '{
  "cluster_name": "csa-tutorial-cluster",
  "spark_version": "14.3.x-scala2.12",
  "node_type_id": "Standard_DS3_v2",
  "num_workers": 0,
  "autotermination_minutes": 30,
  "spark_conf": {
    "spark.databricks.cluster.profile": "singleNode",
    "spark.master": "local[*]"
  },
  "custom_tags": {
    "ResourceClass": "SingleNode"
  }
}'

Wait for the cluster to reach RUNNING state (2-5 minutes).

{
    "cluster_id": "0422-123456-abcdef"
}

Troubleshooting¶

Step 9: Configure Data Factory for Ingestion¶

Set up a simple Data Factory pipeline to copy raw data into the Bronze layer.

9a. Create Linked Services¶

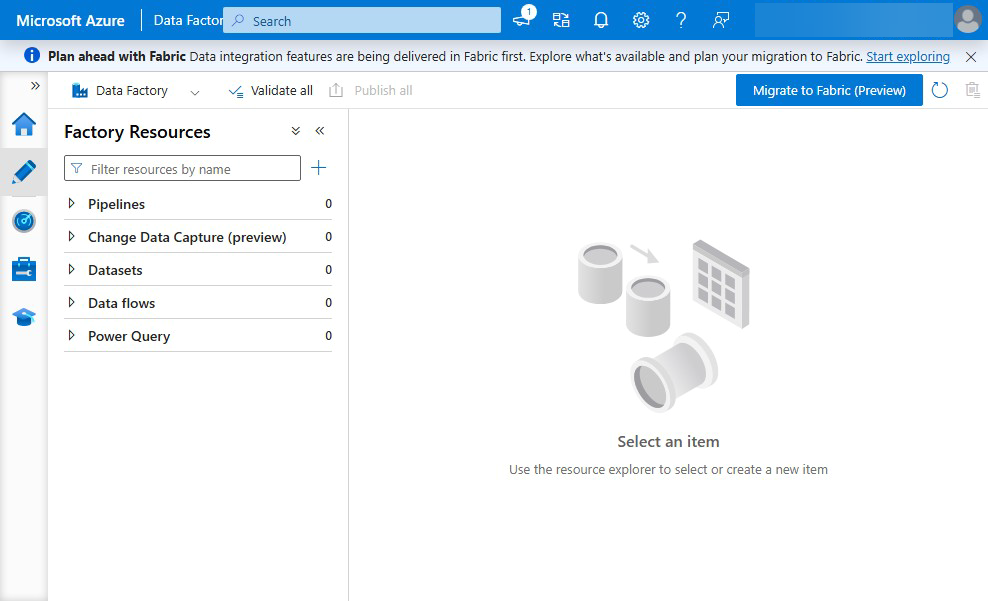

In the Azure Portal, navigate to your Data Factory (csa-adf-dev) → Manage → Linked services.

Create an Azure Data Lake Storage Gen2 linked service:

• Name: ls_adls_bronze
• Authentication: System-assigned Managed Identity
• URL: https://csadlsdev.dfs.core.windows.net

Test the connection. If it fails, verify the RBAC assignment from Step 7b completed.

9b. Create a Simple Copy Pipeline¶

For the tutorial, we will ingest data via the dbt workflow in Step 10 instead of building a full ADF pipeline. Data Factory is ready for production pipelines — refer to docs/ADF_SETUP.md for detailed pipeline configuration.

Verify Data Factory is accessible:

az datafactory show \
  --name "csa-adf-dev" \
  --resource-group "$CSA_RG_DLZ" \
  --query "{name:name, state:properties.publicNetworkAccess, provisioningState:provisioningState}" \
  --output table

Name          State     ProvisioningState
------------  --------  -------------------
csa-adf-dev   Enabled   Succeeded

Troubleshooting¶

Step 10: Run the dbt Pipeline with USDA Data¶

This is the core data engineering exercise. You will download real USDA open data, load it into the Bronze layer, and use dbt to transform it through the medallion architecture: Bronze → Silver → Gold.

10a. Install dbt¶

# From the repo root, in your virtual environment
pip install dbt-core dbt-databricks
dbt --version

Core:
  - installed: 1.8.x
  - latest:    1.8.x

Plugins:
  - databricks: 1.8.x

10b. Download USDA Open Data¶

The CSA-in-a-Box repo includes a data download script and the USDA vertical example.

# Download USDA open datasets
python scripts/data/seed-sample-data.sh
# Or use the USDA-specific data in the example
ls examples/usda/data/open-data/

If the download script is not available, manually download from the USDA APIs:

mkdir -p examples/usda/data/open-data

# USDA NASS QuickStats (crop production data)
curl -o examples/usda/data/open-data/nass_quickstats.csv \
  "https://quickstats.nass.usda.gov/api/api_GET/?key=YOUR_API_KEY&commodity_desc=CORN&year=2023&format=CSV"

# Or use the seed data already in the repo
ls examples/usda/data/

10c. Upload Raw Data to Bronze¶

Upload the raw CSV files to the Bronze container in your Data Lake:

STORAGE_ACCT=$(az storage account list \
  --resource-group "$CSA_RG_DLZ" \
  --query "[0].name" -o tsv)

# Create medallion containers if not already created by Bicep
for LAYER in bronze silver gold; do
  az storage container create \
    --name "$LAYER" \
    --account-name "$STORAGE_ACCT" \
    --auth-mode login \
    2>/dev/null || true
done

# Upload USDA data to Bronze
az storage blob upload-batch \
  --destination bronze \
  --source examples/usda/data/ \
  --account-name "$STORAGE_ACCT" \
  --auth-mode login \
  --destination-path "usda/" \
  --overwrite

Finished[#############################################################]  100.0000%
[
  {
    "Blob": "usda/open-data/nass_quickstats.csv",
    "Last Modified": "2026-04-22T...",
    "eTag": "..."
  },
  ...
]

10d. Configure dbt Profile¶

Create a dbt profile that connects to your Databricks workspace:

mkdir -p ~/.dbt

cat > ~/.dbt/profiles.yml << 'PROFILE'
csa_usda:
  target: dev
  outputs:
    dev:
      type: databricks
      catalog: hive_metastore
      schema: usda_gold
      host: "${DATABRICKS_HOST#https://}"
      http_path: /sql/1.0/warehouses/AUTO
      token: "${DATABRICKS_TOKEN}"
      threads: 4
PROFILE

Note: Replace the host and token values with your actual Databricks workspace URL (without https://) and personal access token from Step 8b. The http_path can point to either a SQL Warehouse or a cluster. For the tutorial cluster, use: /sql/protocolv1/o/0/0422-123456-abcdef (replace with your cluster ID).

10e. Run dbt Models¶

Navigate to the USDA dbt project and run the transformations:

cd examples/usda/domains/dbt

# Verify dbt can connect
dbt debug

# Install dbt packages (if any)
dbt deps

# Load seed data (reference CSVs)
dbt seed

# Run all models: Bronze → Silver → Gold
dbt run

# Run tests to validate data quality
dbt test

Running with dbt=1.8.x
Found X models, Y tests, Z seeds

Concurrency: 4 threads (target='dev')

1 of X OK created sql table model usda_bronze.raw_nass_quickstats .... [OK in 12.34s]
2 of X OK created sql table model usda_silver.stg_nass_quickstats .... [OK in 8.56s]
3 of X OK created sql table model usda_gold.fct_crop_production ...... [OK in 6.78s]
...

Finished running X table models in 0 hours 1 minutes and 23.45 seconds (83.45s).

Completed successfully

Done. PASS=X WARN=0 ERROR=0 SKIP=0 TOTAL=X

10f. Validate Row Counts¶

After dbt completes, verify data materialized correctly:

dbt run-operation check_row_counts 2>/dev/null || \
  echo "Run the following SQL in Databricks to validate:"

cat << 'SQL'
-- Run in Databricks SQL Editor or a notebook
SELECT 'bronze' as layer, count(*) as row_count FROM usda_bronze.raw_nass_quickstats
UNION ALL
SELECT 'silver', count(*) FROM usda_silver.stg_nass_quickstats
UNION ALL
SELECT 'gold', count(*) FROM usda_gold.fct_crop_production
ORDER BY layer;
SQL

Expected pattern: Bronze has the most rows (raw), Silver has slightly fewer (cleaned/deduped), Gold has aggregated facts.

cd ../../../..

Troubleshooting¶

Step 11: Query Gold Layer with Synapse Serverless SQL¶

Now that data is in the Gold layer, query it using Synapse Analytics serverless SQL — no infrastructure to manage.

11a. Get Synapse Endpoint¶

SYN_ENDPOINT=$(az synapse workspace show \
  --name "csa-syn-dev" \
  --resource-group "$CSA_RG_DLZ" \
  --query "connectivityEndpoints.sql" -o tsv)

echo "Synapse SQL endpoint: $SYN_ENDPOINT"

11b. Create an External Data Source¶

Open Synapse Studio (https://csa-syn-dev.dev.azuresynapse.net) or use sqlcmd:

-- Connect to the built-in serverless SQL pool

-- Create a database for analytics
CREATE DATABASE usda_analytics;
GO

USE usda_analytics;
GO

-- Create a credential for accessing the Data Lake
CREATE MASTER KEY ENCRYPTION BY PASSWORD = 'YourStr0ngP@ssw0rd!';

CREATE DATABASE SCOPED CREDENTIAL ManagedIdentityCredential
WITH IDENTITY = 'Managed Identity';

-- Create an external data source pointing to the Gold container
CREATE EXTERNAL DATA SOURCE GoldLayer
WITH (
    LOCATION = 'abfss://gold@csadlsdev.dfs.core.windows.net',
    CREDENTIAL = ManagedIdentityCredential
);

-- Create an external file format for Delta
CREATE EXTERNAL FILE FORMAT DeltaFormat
WITH (FORMAT_TYPE = DELTA);

11c. Query Gold Data¶

-- Query the Gold layer directly using OPENROWSET
SELECT TOP 100 *
FROM OPENROWSET(
    BULK 'usda/fct_crop_production/',
    DATA_SOURCE = 'GoldLayer',
    FORMAT = 'DELTA'
) AS crop_data;

-- Aggregation example
SELECT
    commodity_desc,
    year,
    SUM(value) AS total_production
FROM OPENROWSET(
    BULK 'usda/fct_crop_production/',
    DATA_SOURCE = 'GoldLayer',
    FORMAT = 'DELTA'
) AS crop_data
GROUP BY commodity_desc, year
ORDER BY year DESC, total_production DESC;

commodity_desc    year    total_production
----------------  ------  ----------------
CORN              2023    15,234,000,000
SOYBEANS          2023     4,165,000,000
WHEAT             2023     1,812,000,000
...

Troubleshooting¶

Step 12: Connect Power BI (Optional)¶

If you have Power BI Desktop, you can connect directly to Synapse serverless SQL or Databricks for interactive dashboards.

Option A: Connect to Synapse¶

1. Open Power BI Desktop
2. Get Data → Azure → Azure Synapse Analytics SQL
3. Server: paste $SYN_ENDPOINT value from Step 11a
4. Database: usda_analytics
5. Data Connectivity mode: DirectQuery (recommended) or Import
6. Sign in with your Microsoft Entra ID credentials
7. Select the Gold-layer views/tables and build your report

Option B: Connect to Databricks¶

1. Open Power BI Desktop
2. Get Data → Azure → Azure Databricks
3. Server hostname: your Databricks workspace URL
4. HTTP Path: /sql/protocolv1/o/0/<cluster-id>
5. Use your personal access token for authentication
6. Select Gold-layer tables

Validation¶

Run the automated validation script to confirm your Foundation Platform is correctly deployed:

cd docs/tutorials/01-foundation-platform

chmod +x validate.sh

./validate.sh --prefix csa --env dev

==========================================
  CSA-in-a-Box Foundation Validation
==========================================
  Prefix:       csa
  Environment:  dev
==========================================

Using subscription: My Azure Subscription

--- Resource Groups ---
  PASS  Resource group 'csa-rg-alz-dev' exists
  PASS  Resource group 'csa-rg-dmlz-dev' exists
  PASS  Resource group 'csa-rg-dlz-dev' exists

--- Data Management Landing Zone (DMLZ) ---
  PASS  Microsoft Purview found in 'csa-rg-dmlz-dev' (count: 1)
  PASS  Key Vault found in 'csa-rg-dmlz-dev' (count: 1)
  PASS  Container Registry found in 'csa-rg-dmlz-dev' (count: 1)

--- Data Landing Zone (DLZ) ---
  PASS  Storage Account found in 'csa-rg-dlz-dev' (count: 1)
  PASS  Databricks Workspace found in 'csa-rg-dlz-dev' (count: 1)
  PASS  Synapse Workspace found in 'csa-rg-dlz-dev' (count: 1)
  PASS  Data Factory found in 'csa-rg-dlz-dev' (count: 1)
  PASS  Event Hubs Namespace found in 'csa-rg-dlz-dev' (count: 1)

--- Networking ---
  PASS  VNet found in DLZ
  PASS  Private endpoints configured (3 found)

--- Databricks ---
  PASS  Databricks workspace URL: https://adb-1234567890.12.azuredatabricks.net

--- Storage (Medallion Architecture) ---
  PASS  Container 'bronze' exists in storage account 'csadlsdev'
  PASS  Container 'silver' exists in storage account 'csadlsdev'
  PASS  Container 'gold' exists in storage account 'csadlsdev'

--- dbt Pipeline (USDA Vertical) ---
  PASS  Gold layer contains data (42 blobs)

==========================================
  Results: 18 passed, 0 failed, 0 warnings (of 18 checks)
==========================================
  All checks passed! Your Foundation Platform is ready.

Completion Checklist¶

• Three resource groups created (ALZ, DMLZ, DLZ)
• ALZ deployed: Log Analytics, Policy, Hub VNet
• DMLZ deployed: Purview, Key Vault, Container Registry
• DLZ deployed: Storage, Databricks, Synapse, Data Factory, Event Hubs
• VNet peering configured between Hub and Spoke
• RBAC assigned: services have Storage Blob Data Contributor
• Databricks cluster created and running
• Data Factory accessible with linked service to ADLS
• USDA data loaded into Bronze container
• dbt pipeline ran successfully: Bronze → Silver → Gold
• Gold layer queryable via Synapse serverless SQL
• validate.sh reports all checks as PASS

Next Steps¶

Your Foundation Platform is ready. Choose your next path:

• Tutorial 02: Governance & Compliance — Set up Purview cataloging and policy guardrails (recommended next)
• Tutorial 05: Real-Time Streaming — Add Event Hubs and Structured Streaming
• Tutorial 06: AI Analytics — Deploy Azure OpenAI and ML pipelines

See the Tutorial Index for all available paths.

Clean Up (Optional)¶

To remove all resources created in this tutorial and stop incurring costs:

# Delete in reverse order to avoid dependency issues
az group delete --name "$CSA_RG_DLZ"  --yes --no-wait
az group delete --name "$CSA_RG_DMLZ" --yes --no-wait
az group delete --name "$CSA_RG_ALZ"  --yes --no-wait

Warning: This permanently deletes all resources and data. Only run this if you are finished with the tutorials or want to start fresh. Deletion takes 10-20 minutes to complete.

Reference¶

• CSA-in-a-Box Architecture
• Getting Started Guide
• Databricks Guide
• ADF Setup
• Troubleshooting
• USDA Vertical Example
• Bicep DLZ Modules
• Bicep DMLZ Modules
• Bicep ALZ Templates
