Overview

This guide details the architecture patterns for implementing Azure Private Link with Azure Synapse Analytics, ensuring secure network isolation and private connectivity.

🔐 Private Link Architecture Components¶

Azure Private Link provides secure private connectivity to Azure Synapse Analytics and related services.

🔗 Private Endpoints

The interface for connecting privately to Azure services

→ Endpoint design
🌐 DNS Configuration

Private DNS integration for name resolution

→ DNS setup
📡 Network Topology

VNet design for Synapse with Private Link

→ Network design
✅ Connectivity Validation

Testing and validating private connectivity

→ Validation

Reference Architecture¶

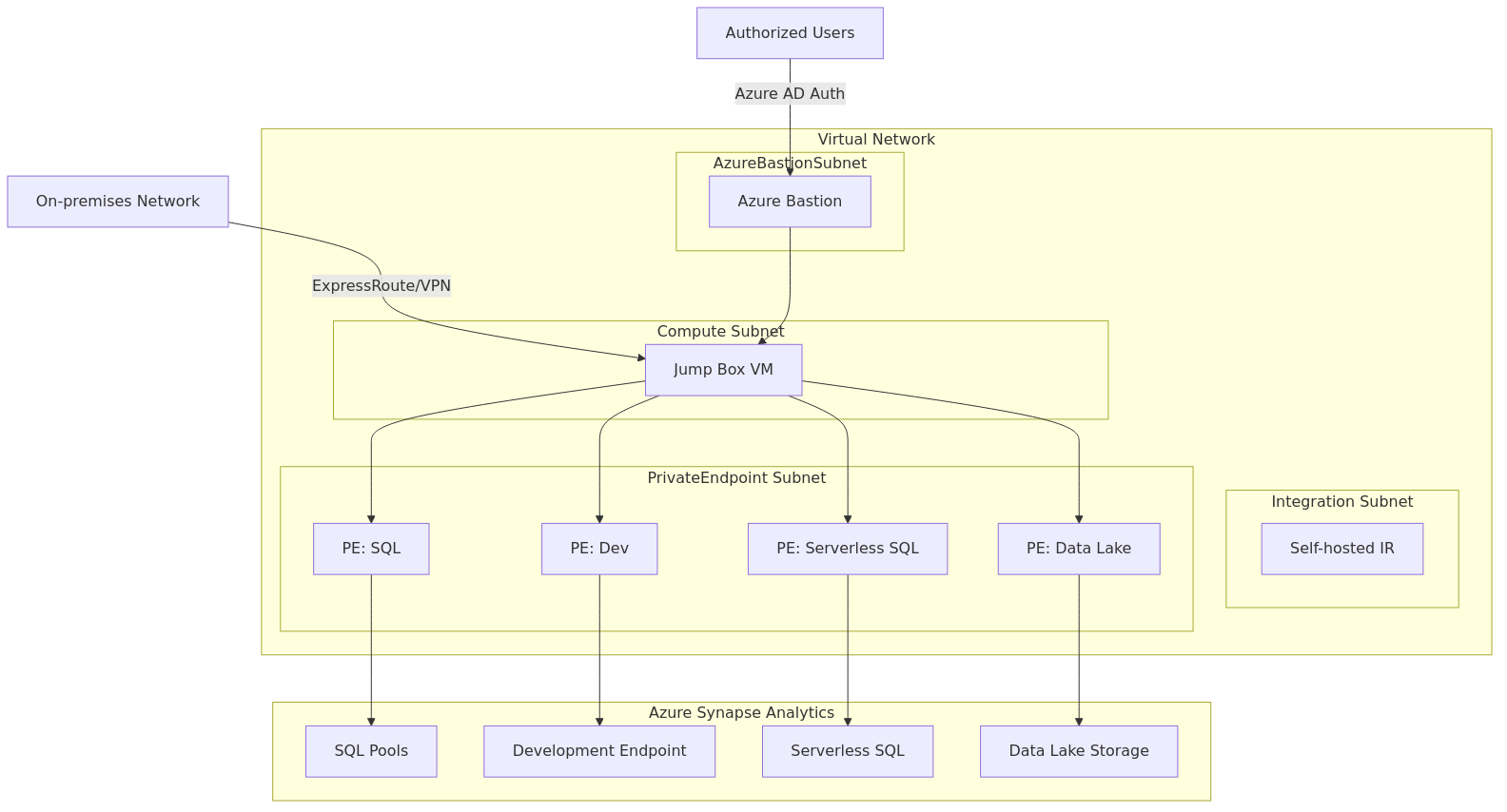

Azure Synapse Analytics Private Link reference architecture showing private endpoints, virtual networks, and secure connectivity patterns

Private Endpoint Design¶

Security Alert

Each Synapse component requires its own private endpoint with the correct group ID to function properly.

Azure Synapse Analytics requires multiple private endpoints for complete private connectivity:

Component	Group ID	DNS Zone	Purpose
SQL	Sql	privatelink.sql.azuresynapse.net	SQL pools access
SQL On-Demand	SqlOnDemand	privatelink.sql.azuresynapse.net	Serverless SQL access
Dev	Dev	privatelink.dev.azuresynapse.net	Development experience
Web	Web	privatelink.azuresynapse.net	Web UI access

ARM Template for Private Endpoints

{
  "type": "Microsoft.Network/privateEndpoints",
  "apiVersion": "2020-11-01",
  "name": "synapse-sql-endpoint",
  "location": "[parameters('location')]",
  "properties": {
    "privateLinkServiceConnections": [
      {
        "name": "synapse-sql-endpoint",
        "properties": {
          "privateLinkServiceId": "[resourceId('Microsoft.Synapse/workspaces', parameters('workspaceName'))]",
          "groupIds": [
            "Sql"
          ]
        }
      }
    ],
    "subnet": {
      "id": "[variables('subnetId')]"
    }
  },
  "dependsOn": [
    "[resourceId('Microsoft.Synapse/workspaces', parameters('workspaceName'))]"
  ]
}

Private DNS Configuration¶

Each private endpoint requires corresponding DNS zone configuration:

Create private DNS zones for each endpoint type
Link DNS zones to your virtual network
Create A records for each private endpoint
Configure DNS resolution between on-premises and Azure

# Example: Create Private DNS Zones
$resourceGroup = "myResourceGroup"
$vnetName = "myVNet"
$vnetId = (Get-AzVirtualNetwork -Name $vnetName -ResourceGroupName $resourceGroup).Id

# Create DNS zones
New-AzPrivateDnsZone -ResourceGroupName $resourceGroup -Name "privatelink.sql.azuresynapse.net"
New-AzPrivateDnsZone -ResourceGroupName $resourceGroup -Name "privatelink.dev.azuresynapse.net"
New-AzPrivateDnsZone -ResourceGroupName $resourceGroup -Name "privatelink.azuresynapse.net"

# Link DNS zones to VNet
New-AzPrivateDnsVirtualNetworkLink -ResourceGroupName $resourceGroup `
  -ZoneName "privatelink.sql.azuresynapse.net" `
  -Name "link-to-$vnetName" `
  -VirtualNetworkId $vnetId `
  -EnableRegistration $false

# Repeat for other DNS zones

Network Topology¶

Secure Data Lakehouse Access Control

Implement these network topology best practices:

Hub-Spoke Model - Central connectivity hub with Synapse in a spoke VNet
Dedicated Subnets - Separate subnet for private endpoints
Network Security Groups - Control traffic flow between subnets
Route Tables - Direct traffic through security appliances when needed
Azure Firewall - Filter outbound traffic from Synapse

Best Practice

Use subnet segregation to separate private endpoints by service type for better security and management.

Connectivity Validation¶

Validate your private link configuration with these methods:

DNS Resolution Testing:

# Test DNS resolution
nslookup myworkspace.sql.azuresynapse.net
# Should resolve to private IP address

Connection Testing:

# Test SQL connection
sqlcmd -S myworkspace.sql.azuresynapse.net -U username -P password

Network Path Analysis:

# Trace route should not go through internet
tracert myworkspace.sql.azuresynapse.net

Hybrid Connectivity Scenarios¶

Integration Point

ExpressRoute or Site-to-Site VPN integration is essential for on-premises to Azure Synapse private connectivity.

Configure these hybrid connectivity patterns:

ExpressRoute with Private Peering - Dedicated circuit for low-latency connectivity
Site-to-Site VPN - Encrypted connection over the internet
Point-to-Site VPN - For individual client connections
DNS Forwarding - Configure DNS forwarding for on-premises name resolution

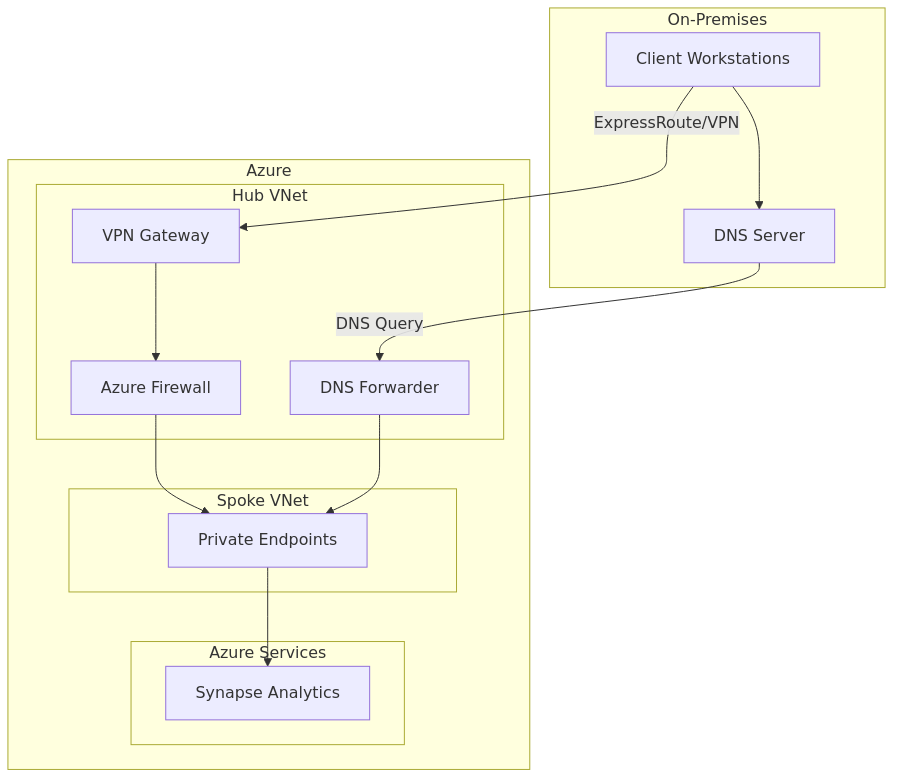

Hybrid connectivity architecture for Azure Synapse Analytics showing ExpressRoute, VPN connections, and DNS forwarding for on-premises integration

Scalability and High Availability¶

Design your private link architecture for scalability and high availability:

Multiple Private Endpoints in different subnets for load distribution
Redundant ExpressRoute Circuits for hybrid connectivity
Zone-Redundant VPN Gateways for high availability
Multiple DNS Servers for resilient name resolution
Cross-Region Private Endpoints for disaster recovery scenarios

Implementation Checklist¶

Create virtual network with dedicated subnet for private endpoints
Create private endpoints for all Synapse components (SQL, Dev, Web, etc.)
Configure private DNS zones and link to your virtual network
Set up DNS resolution between on-premises and Azure
Configure NSGs with appropriate security rules
Implement hybrid connectivity (ExpressRoute or VPN)
Test connectivity from all required client locations
Document network architecture and DNS configuration
