Security & Compliance Best Practices¶

Overview¶

CSA-in-a-Box deploys analytics platforms that handle sensitive data across federal, healthcare, and enterprise environments. Security is not an afterthought — it is embedded into every layer of the architecture through defense-in-depth and Zero Trust principles.

Core Zero Trust Tenets:

• Verify explicitly — Always authenticate and authorize based on all available data points (identity, location, device, service, data classification, anomalies).
• Use least-privilege access — Limit user access with Just-In-Time (JIT) and Just-Enough-Access (JEA), risk-based adaptive policies, and data protection.
• Assume breach — Minimize blast radius and segment access. Verify end-to-end encryption. Use analytics to detect threats, drive improvements, and improve defenses.

No single control is sufficient. Each layer compensates for gaps in other layers. Network isolation stops lateral movement, identity controls prevent unauthorized access, encryption protects data at rest and in transit, and monitoring detects anomalies.

Network Architecture¶

The following diagram illustrates the target network topology for a secure CSA-in-a-Box deployment.

graph TB
    subgraph Internet
        Users["Analysts / Users"]
        CICD["CI/CD Pipelines"]
    end

    subgraph Hub VNet
        FW["Azure Firewall<br/>Egress Control"]
        Bastion["Azure Bastion<br/>Secure Admin Access"]
        VPN["VPN Gateway /<br/>ExpressRoute"]
    end

    subgraph Spoke: Data Platform VNet
        subgraph Data Subnet
            ADLS["ADLS Gen2<br/>Private Endpoint"]
            Synapse["Synapse Analytics<br/>Private Endpoint"]
            ADF["Data Factory<br/>Private Endpoint"]
        end

        subgraph Compute Subnet
            DBX["Databricks Workspace<br/>VNet-Injected"]
            IR["Self-Hosted IR<br/>VM"]
        end

        subgraph Management Subnet
            KV["Key Vault<br/>Private Endpoint"]
            Purview["Microsoft Purview<br/>Private Endpoint"]
        end

        NSG1["NSG: Data"]
        NSG2["NSG: Compute"]
        NSG3["NSG: Management"]
    end

    Users -->|"HTTPS / Conditional Access"| FW
    CICD -->|"Service Principal"| FW
    FW --> ADLS
    FW --> Synapse
    FW --> DBX
    Bastion -->|"RDP/SSH"| IR
    VPN -->|"On-prem connectivity"| FW
    NSG1 -.->|"Deny by default"| Data Subnet
    NSG2 -.->|"Deny by default"| Compute Subnet
    NSG3 -.->|"Deny by default"| Management Subnet

Network Isolation¶

VNet Design — Hub-Spoke with Data Landing Zones¶

Adopt a hub-spoke topology where shared services (firewall, DNS, bastion) live in the hub, and each data landing zone occupies its own spoke VNet. This provides blast-radius containment and clear network boundaries.

Private Endpoints for All PaaS Services¶

Every PaaS service must connect through a Private Endpoint. This removes the service from the public internet and routes traffic entirely through the VNet backbone.

Required Private Endpoints:

• Azure Data Lake Storage Gen2 (blob, dfs sub-resources)
• Azure Databricks (front-end and back-end connectivity via VNet injection)
• Azure Synapse Analytics (Sql, SqlOnDemand, Dev)
• Azure Key Vault (vault)
• Microsoft Purview (account, portal)
• Azure Data Factory (dataFactory)

NSG Rules — Deny by Default¶

Every subnet must have an NSG attached with an explicit deny-all inbound rule at the lowest priority. Allow only required traffic.

Azure Firewall for Egress Control¶

All outbound traffic must route through Azure Firewall with application and network rules. Block all egress by default and allow only required FQDNs (e.g., PyPI for Databricks library installs, Microsoft Entra ID for authentication).

Service Endpoints vs Private Endpoints¶

Do / Don't — Network Isolation¶

Bicep — Private Endpoint for ADLS Gen2¶

resource storageAccount 'Microsoft.Storage/storageAccounts@2023-05-01' existing = {
  name: storageAccountName
}

resource privateEndpoint 'Microsoft.Network/privateEndpoints@2023-11-01' = {
  name: 'pe-${storageAccountName}-blob'
  location: location
  properties: {
    subnet: {
      id: dataSubnetId
    }
    privateLinkServiceConnections: [
      {
        name: 'plsc-${storageAccountName}-blob'
        properties: {
          privateLinkServiceId: storageAccount.id
          groupIds: [
            'blob'
          ]
        }
      }
    ]
  }
}

resource privateDnsZoneGroup 'Microsoft.Network/privateEndpoints/privateDnsZoneGroups@2023-11-01' = {
  parent: privateEndpoint
  name: 'default'
  properties: {
    privateDnsZoneConfigs: [
      {
        name: 'config-blob'
        properties: {
          privateDnsZoneId: blobPrivateDnsZoneId
        }
      }
    ]
  }
}

// Disable public access on the storage account
resource storageNetworkRules 'Microsoft.Storage/storageAccounts@2023-05-01' = {
  name: storageAccountName
  location: location
  properties: {
    publicNetworkAccess: 'Disabled'
    networkAcls: {
      defaultAction: 'Deny'
    }
  }
}

Identity & Access Management¶

Managed Identity Everywhere¶

Use system-assigned or user-assigned Managed Identities for every service-to-service interaction. Managed Identities eliminate credentials entirely — no connection strings, no keys, no passwords to rotate.

Microsoft Entra ID Group-Based RBAC¶

Assign roles to Entra ID security groups, not individual users. This ensures consistent access, simplifies auditing, and enables bulk changes.

Recommended Group Structure:

Least Privilege — Specific Roles, Not Owner/Contributor¶

Never assign Owner or Contributor at subscription scope for day-to-day operations. Use purpose-built roles scoped to the narrowest resource.

Service Principals — CI/CD Only¶

Service principals with client secrets should only be used for CI/CD pipelines that cannot use Managed Identity (e.g., GitHub Actions). Prefer federated credentials (OIDC) to eliminate secret management entirely.

Conditional Access Policies¶

Enforce Conditional Access for all human users accessing the data platform:

• Require MFA for all users
• Block legacy authentication protocols
• Require compliant devices for admin access
• Restrict by location — allow only corporate network or approved IPs
• Session controls — enforce sign-in frequency for sensitive apps

Just-In-Time (JIT) Access¶

Use Privileged Identity Management (PIM) for elevated roles:

• Admin roles are eligible, not permanently assigned
• Activation requires justification and optional approval
• Time-boxed to 1–8 hours maximum
• All activations are logged and auditable

Do / Don't — Identity & Access¶

Bicep — Role Assignment with Managed Identity¶

// Assign Storage Blob Data Contributor to Data Factory's managed identity
var storageBlobDataContributorRoleId = 'ba92f5b4-2d11-453d-a403-e96b0029c9fe'

resource roleAssignment 'Microsoft.Authorization/roleAssignments@2022-04-01' = {
  name: guid(storageAccount.id, dataFactory.id, storageBlobDataContributorRoleId)
  scope: storageAccount
  properties: {
    roleDefinitionId: subscriptionResourceId(
      'Microsoft.Authorization/roleDefinitions',
      storageBlobDataContributorRoleId
    )
    principalId: dataFactory.identity.principalId
    principalType: 'ServicePrincipal'
  }
}

Encryption¶

Encryption at Rest¶

All Azure PaaS services encrypt data at rest by default with platform-managed keys (PMK). For regulated workloads, use customer-managed keys (CMK) stored in Key Vault.

CMK requires a Key Vault with soft delete and purge protection enabled. The storage account or service must have a system-assigned managed identity to access the key.

Encryption in Transit¶

• Enforce TLS 1.2 minimum on all services
• Set minimumTlsVersion: 'TLS1_2' on storage accounts
• Disable insecure protocols (HTTP, SMB 2.x, unencrypted NFS)
• Use HTTPS-only for all API and data access

Double Encryption¶

For the most sensitive workloads, enable infrastructure encryption which adds a second layer of encryption with a separate key at the hardware level.

resource storageAccount 'Microsoft.Storage/storageAccounts@2023-05-01' = {
  name: storageAccountName
  location: location
  kind: 'StorageV2'
  sku: { name: 'Standard_LRS' }
  properties: {
    minimumTlsVersion: 'TLS1_2'
    supportsHttpsTrafficOnly: true
    encryption: {
      requireInfrastructureEncryption: true  // Double encryption
      keySource: 'Microsoft.Keyvault'
      keyvaultproperties: {
        keyvaulturi: keyVaultUri
        keyname: encryptionKeyName
      }
    }
  }
  identity: {
    type: 'SystemAssigned'
  }
}

Key Rotation Automation¶

• Configure auto-rotation in Key Vault for encryption keys
• Set rotation policy: rotate every 90 days, notify 30 days before expiry
• Use Event Grid to trigger automation on key near-expiry events
• Test rotation in staging before enabling in production

Secrets Management¶

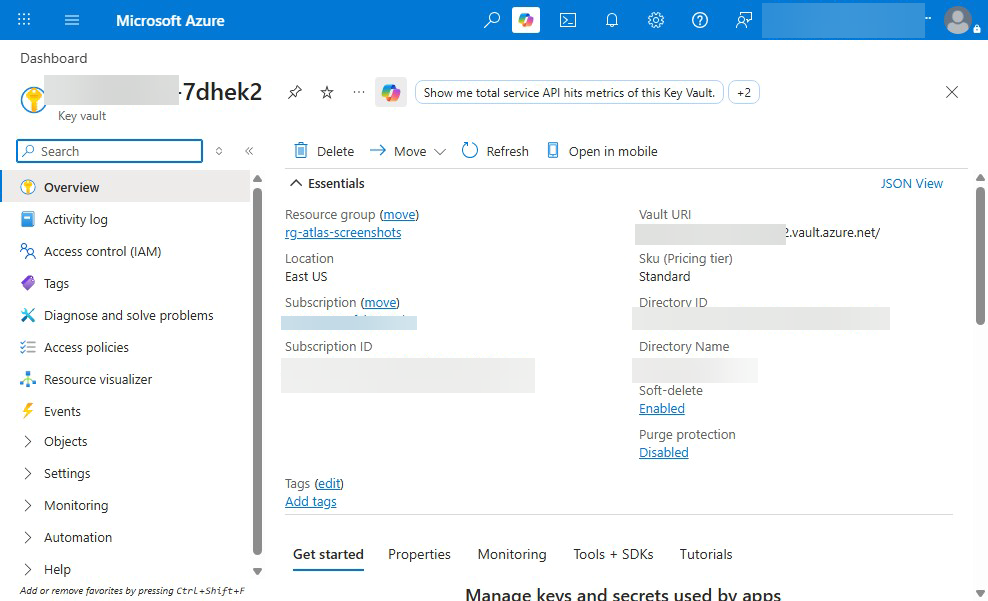

Key Vault for Everything¶

All secrets, keys, and certificates must be stored in Azure Key Vault. No exceptions.

Key Vault References in Services¶

Secret Rotation¶

• Set expiration dates on all secrets
• Use Event Grid + Azure Functions for automated rotation
• Rotate secrets every 90 days at minimum
• Implement zero-downtime rotation (dual-key pattern)

NEVER commit secrets, keys, or connection strings to source control. This includes:

- Hardcoded passwords in application code
- Connection strings in `appsettings.json` committed to git
- API keys in Databricks notebooks or cells
- Secrets passed as ADF pipeline parameters
- Account keys in Bicep parameter files
- `.env` files committed to repositories

Use **Key Vault references** and **Managed Identity** for all secret access.

Databricks notebooks should never read secrets from environment variables or widget parameters. Use the Databricks secret scope backed by Azure Key Vault:

```python
# ✅ Correct — Key Vault-backed secret scope
secret = dbutils.secrets.get(scope="keyvault-scope", key="api-key")

# ❌ WRONG — Never do this
secret = os.environ["API_KEY"]
secret = dbutils.widgets.get("api_key")
```

Compliance Framework Alignment¶

FedRAMP High — Key Control Mappings¶

CMMC 2.0 Level 2 Alignment¶

CMMC Level 2 maps to the 110 practices in NIST SP 800-171 Rev 2. Key domains covered by CSA-in-a-Box:

• Access Control (AC) — Entra ID RBAC, Conditional Access, PIM
• Audit & Accountability (AU) — Diagnostic Settings, Log Analytics, Sentinel
• Configuration Management (CM) — Bicep IaC, Azure Policy, immutable deployments
• Identification & Authentication (IA) — MFA, Managed Identity, certificate-based auth
• Media Protection (MP) — CMK encryption, secure data disposal
• System & Communications Protection (SC) — Private Endpoints, TLS, network segmentation

HIPAA Security Rule Alignment¶

NIST 800-53 Rev 5 — Priority Controls¶

For data analytics platforms, focus on these high-impact control families:

1. SC-7 Boundary Protection — Network segmentation, Private Endpoints, Azure Firewall
2. AC-6 Least Privilege — PIM, scoped RBAC, Managed Identity
3. AU-2 Event Logging — Diagnostic Settings on all resources
4. SC-28 Protection of Information at Rest — CMK encryption
5. IA-2 Multi-Factor Authentication — Conditional Access with MFA
6. CM-2 Baseline Configuration — Bicep IaC as the single source of truth

See the Compliance documentation for detailed control matrices, evidence collection templates, and audit preparation guides.

Azure Government¶

When to Use Azure Government vs Commercial¶

Service Availability Differences¶

Not all Azure services are available in Azure Government. Key gaps to watch:

• Azure Databricks — Available in Gov, but check region availability
• Microsoft Purview — Check current availability in Gov regions
• Azure OpenAI Service — Limited availability in Gov
• Managed Grafana — May not be available; plan alternatives

Check the Azure Government services by region page before architecture decisions. See also the Gov Service Matrix guide.

Endpoint Differences¶

Use environment() functions in Bicep or azurerm provider environment parameter in Terraform to automatically resolve correct endpoints. Never hardcode cloud-specific URLs.

Audit & Monitoring¶

Diagnostic Settings for All Resources¶

Every deployed resource must have Diagnostic Settings configured to send logs and metrics to a central Log Analytics Workspace.

resource diagnosticSettings 'Microsoft.Insights/diagnosticSettings@2021-05-01-preview' = {
  name: 'diag-${resourceName}'
  scope: targetResource
  properties: {
    workspaceId: logAnalyticsWorkspaceId
    logs: [
      {
        categoryGroup: 'allLogs'
        enabled: true
        retentionPolicy: {
          enabled: true
          days: 365
        }
      }
    ]
    metrics: [
      {
        category: 'AllMetrics'
        enabled: true
        retentionPolicy: {
          enabled: true
          days: 90
        }
      }
    ]
  }
}

Azure Activity Log Retention¶

• Export Activity Logs to Log Analytics (minimum 1 year for compliance)
• Archive to Storage Account for long-term retention (7 years for FedRAMP)
• Set up alerts for critical administrative operations (role assignments, policy changes, resource deletions)

Microsoft Defender for Cloud¶

Enable Defender for Cloud with the following plans:

Review and remediate Secure Score recommendations weekly.

Microsoft Sentinel for Security Analytics¶

For organizations requiring a SIEM:

• Connect all Diagnostic Settings to the Sentinel workspace
• Enable built-in analytics rules for Azure resource anomalies
• Create custom analytics rules for data platform-specific threats (e.g., bulk data export, unusual storage access patterns)
• Configure automated response playbooks for critical alerts

Anti-Patterns¶

Never leave a storage account with publicNetworkAccess: 'Enabled' and defaultAction: 'Allow'. This exposes all data to the internet.

Account keys grant full control over the entire storage account. Never use listKeys() in application code. Use Managed Identity with RBAC instead.

CI/CD pipelines and automation accounts should never have Owner role. Use the narrowest role that accomplishes the task (e.g., Contributor scoped to a single resource group, or better, specific resource-level roles).

Azure DevOps pipeline variables and GitHub Actions secrets are convenient but not a substitute for Key Vault. Pipeline variables are visible to pipeline editors and may appear in logs. Always reference Key Vault from pipelines.

If a resource has no Diagnostic Settings, you have zero visibility into security events. Deploy diagnostic settings as part of every resource module — never as an afterthought.

Deploying all resources into a single flat VNet with no NSGs provides no blast-radius containment. An attacker who compromises one service can reach everything.

Security Checklist¶

Use this checklist before any environment is promoted to production.

Network¶

• All PaaS services connected via Private Endpoints
• Public network access disabled on all storage accounts, Key Vaults, and databases
• NSGs attached to every subnet with deny-all default
• Azure Firewall configured for egress filtering
• NSG flow logs enabled and sent to Log Analytics
• Private DNS Zones configured for all Private Endpoint types
• No direct spoke-to-spoke peering (all traffic routes through hub)

Identity & Access¶

• Managed Identity used for all service-to-service authentication
• No account keys, connection strings, or passwords in configuration
• RBAC assigned to Entra ID groups, not individual users
• No permanent Owner or Contributor assignments
• PIM enabled for admin roles
• Conditional Access policies enforce MFA
• Legacy authentication protocols blocked
• Break-glass accounts created, documented, and monitored
• Service principals use federated credentials (OIDC) where possible

Encryption¶

• TLS 1.2 minimum enforced on all services
• Customer-managed keys configured (if required by compliance)
• Infrastructure encryption enabled for sensitive workloads
• Key rotation policy configured in Key Vault
• Key Vault has soft delete and purge protection enabled

Secrets¶

• All secrets stored in Key Vault (none in code, config, or env vars)
• Secret expiration dates set
• Secret rotation automation configured
• Databricks uses Key Vault-backed secret scopes
• ADF Linked Services reference Key Vault for credentials

Compliance¶

• Azure Policy assignments enforce required configurations
• Regulatory compliance dashboard reviewed in Defender for Cloud
• Control mapping documented for applicable framework (FedRAMP/CMMC/HIPAA)
• Evidence collection automated where possible

Monitoring¶

• Diagnostic Settings configured on every resource
• Activity Log exported to Log Analytics (1-year minimum retention)
• Defender for Cloud enabled with relevant plans
• Secure Score reviewed and remediation tracked
• Alerts configured for critical security events
• Security contact email configured in Defender for Cloud
• Sentinel deployed (if SIEM required)

Azure Government (if applicable)¶

• All services confirmed available in target Gov region
• Endpoints use .us / .usgovcloudapi.net suffixes
• No hardcoded commercial cloud URLs in code or templates
• Gov-specific compliance requirements validated
