CSA-in-a-Box Architecture¶

Comparative positioning note

This document is written from the perspective of Microsoft Azure, Cloud Scale Analytics, and CSA Loom. Any description of third-party or competing products, services, pricing, or capabilities is derived from publicly available documentation and sources believed accurate at the time of writing, and is provided for general comparison only. We do not claim expertise in, or authority over, any non-Microsoft product or service; the respective vendor's official documentation is the authoritative source for their offerings, which may change over time. Nothing here is intended to disparage any vendor — where a competing product has genuine advantages, we aim to note them honestly. Verify all third-party details against the vendor's current official documentation before making decisions.

Note

Quick Summary: Architecture reference for CSA-in-a-Box — the Azure-native reference implementation of the Microsoft "Unify your data platform" CAF guidance, built on Azure PaaS and open-source tooling. Positions Fabric as the primary control plane where GA, and CSA-in-a-Box as the Azure Government gap-filler (Fabric is forecast, not GA), the post-deprecation CAF CSA reference, and an incremental on-ramp to Fabric. Covers the DMLZ/DLZ landing zone pattern, medallion data flow (Bronze/Silver/Gold), streaming via Event Hubs + ADX, AI/ML integration, 9 vertical examples, and Azure Government compatibility.

A comprehensive architecture reference for CSA-in-a-Box — an Azure-native reference implementation of the Microsoft "Unify your data platform" Cloud Adoption Framework guidance, built on Azure PaaS services and open-source tooling. Where Microsoft Fabric is GA in your region and cloud, Fabric is the primary control plane; CSA-in-a-Box is the Fabric-parity stack on Azure PaaS for workloads in Azure Government (Fabric forecast, not GA), for regulated scenarios that need composable IaC, and as an incremental on-ramp whose components compose cleanly into a future Fabric migration.

Note

CAF scenario update (CSA-0068). The legacy "Cloud-Scale Analytics" CAF scenario was deprecated in April 2026 and replaced by Microsoft CAF — Unify your data platform. This document tracks the 2026 "Unify your data platform" guidance. Historical references to the deprecated Cloud-Scale Analytics scenario are retained for context and cross-referencing only — do not use https://learn.microsoft.com/azure/cloud-adoption-framework/scenarios/cloud-scale-analytics/ as an authoritative source for new work.

🏗️ High-Level Architecture¶

graph TB
    %% ─── Data Sources ───────────────────────────────────────────────
    subgraph Sources["Data Sources"]
        direction LR
        Batch["Batch Sources<br/>(SQL, API, Files)"]
        Stream["Streaming Sources<br/>(IoT, Events)"]
        OpenData["Open Data APIs<br/>(USDA, NOAA, EPA, Census)"]
    end

    %% ─── Data Management Landing Zone ────────────────────────────────
    subgraph DMLZ["Data Management Landing Zone"]
        direction TB
        Purview["Microsoft Purview<br/>Catalog &amp; Governance"]
        KV["Azure Key Vault<br/>Secrets Management"]
        Marketplace["Data Marketplace API<br/>Discovery &amp; Access"]
        GovFramework["Governance Framework<br/>Classification, Lineage, MDM"]
        APIM["API Management<br/>Gateway &amp; Rate Limiting"]
    end

    %% ─── Data Landing Zone ──────────────────────────────────────────
    subgraph DLZ["Data Landing Zone(s)"]
        direction TB

        subgraph Ingest["Ingestion Layer"]
            ADF["Azure Data Factory<br/>Orchestration"]
            MetaFW["Metadata Framework<br/>Auto-generated Pipelines"]
            EventHub["Event Hubs<br/>Streaming Ingestion"]
            IoTHub["IoT Hub + DPS<br/>Device Management"]
        end

        subgraph Storage["Storage — OneLake Pattern"]
            direction LR
            Bronze["ADLS Gen2<br/>Bronze (Raw)"]
            Silver["ADLS Gen2<br/>Silver (Validated)"]
            Gold["ADLS Gen2<br/>Gold (Business)"]
        end

        subgraph Compute["Compute Layer"]
            Databricks["Azure Databricks<br/>Spark + Unity Catalog"]
            Synapse["Azure Synapse<br/>SQL Pools + Spark"]
            dbt["dbt Core<br/>Medallion Transforms"]
        end

        subgraph RealTime["Real-Time Analytics"]
            ADX["Azure Data Explorer<br/>KQL Engine"]
            ASA["Stream Analytics<br/>Windowed Aggregation"]
        end

        subgraph AI["AI / ML Layer"]
            AzureML["Azure ML<br/>Model Training"]
            AOAI["Azure OpenAI<br/>GPT-4, Embeddings"]
            RAG["RAG Patterns<br/>Domain Knowledge"]
        end
    end

    %% ─── Platform Services ──────────────────────────────────────────
    subgraph Platform["Platform Services"]
        direction TB
        DataActivator["Data Activator<br/>Event-driven Alerts"]
        DirectLake["Direct Lake<br/>Power BI over Delta"]
        SharedSvc["Shared Services<br/>Azure Functions"]
        OSSAlt["OSS Alternatives<br/>Gov Gap Fillers"]
    end

    %% ─── Consumer Layer ─────────────────────────────────────────────
    subgraph Consumers["Consumer Layer"]
        direction LR
        PowerBI["Power BI<br/>Dashboards &amp; Reports"]
        Portal["Data Onboarding Portal<br/>3 Implementations"]
        APIs["REST APIs<br/>Data Products"]
        Teams["Teams Alerts<br/>Webhooks"]
    end

    %% ─── Connections ────────────────────────────────────────────────
    Batch --> ADF
    Stream --> EventHub
    Stream --> IoTHub
    OpenData --> ADF
    IoTHub --> EventHub

    ADF --> Bronze
    EventHub --> Bronze
    MetaFW --> ADF

    Bronze --> dbt
    dbt --> Silver
    Silver --> dbt
    dbt --> Gold

    Databricks --> Bronze
    Databricks --> Silver
    Databricks --> Gold
    Synapse --> Gold

    EventHub --> ADX
    EventHub --> ASA
    ASA --> Gold
    ASA --> ADX

    Gold --> PowerBI
    Gold --> APIs
    Gold --> DirectLake
    DirectLake --> PowerBI
    ADX --> PowerBI

    Purview --> Bronze
    Purview --> Silver
    Purview --> Gold
    Marketplace --> Purview
    GovFramework --> Purview

    AOAI --> RAG
    AzureML --> Gold

    DataActivator --> Teams
    SharedSvc --> ADF

    Portal --> APIM
    APIM --> Marketplace
    APIM --> ADF

    KV --> ADF
    KV --> Databricks
    KV --> SharedSvc

    %% ─── Styling ────────────────────────────────────────────────────
    classDef source   fill:#0288d1,stroke:#01579b,color:#ffffff,stroke-width:2px,font-weight:bold
    classDef dmlz     fill:#7b1fa2,stroke:#4a148c,color:#ffffff,stroke-width:2px,font-weight:bold
    classDef dlz      fill:#2e7d32,stroke:#1b5e20,color:#ffffff,stroke-width:2px,font-weight:bold
    classDef platform fill:#ef6c00,stroke:#bf360c,color:#ffffff,stroke-width:2px,font-weight:bold
    classDef consumer fill:#c2185b,stroke:#880e4f,color:#ffffff,stroke-width:2px,font-weight:bold

    class Batch,Stream,OpenData source
    class Purview,KV,Marketplace,GovFramework,APIM dmlz
    class ADF,MetaFW,EventHub,IoTHub,Bronze,Silver,Gold,Databricks,Synapse,dbt,ADX,ASA,AzureML,AOAI,RAG dlz
    class DataActivator,DirectLake,SharedSvc,OSSAlt platform
    class PowerBI,Portal,APIs,Teams consumer

🏗️ Architecture Layers¶

1. Data Management Landing Zone (DMLZ)¶

The DMLZ provides centralized governance and shared services across all Data Landing Zones. It is deployed once per environment and manages cross-cutting concerns.

Components:

Component	Service	Purpose
Data Catalog	Microsoft Purview	Asset discovery, classification, lineage tracking
Secrets Management	Azure Key Vault	Connection strings, tokens, certificates
Data Marketplace	Custom FastAPI + Purview	Self-service data product discovery and access requests
Governance Framework	Purview + Custom	Sensitivity labels, automated classification, MDM
API Gateway	API Management	Rate limiting, authentication, routing for all platform APIs

Deployment: deploy/bicep/DMLZ/main.bicep

2. Data Landing Zone (DLZ)¶

Each DLZ represents a domain boundary — a self-contained analytics environment with its own storage, compute, and pipelines. Organizations deploy one or more DLZs based on data domain segmentation (e.g., Finance, Health, Environmental).

🗄️ Storage — OneLake Pattern¶

The medallion architecture uses ADLS Gen2 containers mapped to quality tiers:

Layer	Container	Format	Purpose
Bronze	`bronze/`	Parquet / JSON / Avro	Raw ingestion, append-only, immutable
Silver	`silver/`	Delta Lake	Validated, deduplicated, typed, conformed
Gold	`gold/`	Delta Lake	Business-ready aggregates, dimensions, facts

This mirrors Microsoft Fabric's OneLake with Unity Catalog providing the unified metadata layer across all storage accounts.

⚙️ Ingestion Layer¶

Azure Data Factory — Batch orchestration with parameterized, metadata-driven pipelines. The metadata framework (csa_platform/metadata_framework/) auto-generates ADF pipelines from source registration YAML.
Event Hubs — Kafka-compatible streaming ingestion for IoT, telemetry, and real-time events. Supports Capture to ADLS for cold-path archival.
IoT Hub + DPS — Managed device provisioning and telemetry routing for IoT scenarios (weather stations, AQI sensors, industrial equipment).
Dead-Letter Queue (DLQ) — Canonical per-pipeline poison-message sink (container + Event Grid + metric alert) provided by the shared module deploy/bicep/shared/modules/deadletter/; operator triage + replay procedure in runbooks/dead-letter.md (CSA-0138 / AQ-0033).

⚡ Compute Layer¶

Azure Databricks — Primary Spark engine with Unity Catalog for fine-grained access control. Used for complex transformations, ML feature engineering, and interactive analytics.
Azure Synapse — SQL-based analytics with dedicated and serverless SQL pools. Multi-workspace isolation per organization when needed.
dbt Core — SQL-first transformations implementing the medallion pattern. Each domain has its own dbt project with Bronze, Silver, and Gold models.

📊 Real-Time Analytics¶

Azure Data Explorer (ADX) — Sub-second KQL queries over streaming data. Used for IoT dashboards, anomaly detection, and operational monitoring.
Stream Analytics — Windowed aggregation (tumbling, hopping, sliding) with built-in anomaly detection via AnomalyDetection_SpikeAndDip.

🤖 AI / ML Layer¶

Azure ML — Model training, registry, and deployment. Integrated with Databricks for feature store access.
Azure OpenAI — GPT-4 and embedding models for document enrichment, classification, summarization, and RAG-based Q&A.
RAG Patterns — Domain-specific retrieval-augmented generation using vector search over gold-layer data products.

Deployment: deploy/bicep/DLZ/main.bicep

3. Platform Services¶

Platform services extend the base landing zones with Fabric-equivalent capabilities. Each component is independently deployable.

Service	Fabric Equivalent	Location
Unity Catalog Pattern	OneLake (conceptual)	`csa_platform/unity_catalog_pattern/`
Data Activator	Data Activator	`csa_platform/data_activator/`
Semantic Model	Direct Lake (conceptual)	`csa_platform/semantic_model/`
Data Marketplace	Data Sharing	`csa_platform/data_marketplace/`
Metadata Framework	Metadata-driven ADF	`csa_platform/metadata_framework/`
AI Integration	Copilot / AI	`csa_platform/ai_integration/`
Shared Services	Shared Functions	`csa_platform/functions/`
OSS Alternatives	N/A (Gov gaps)	`csa_platform/oss_alternatives/`
Multi-Synapse	Multi-workspace	`csa_platform/multi_synapse/` (legacy — see `csa_platform/multi_synapse/README.md`; CSA-0139)
Governance	Purview Integration	`csa_platform/csa_platform/governance/purview/` + top-level `csa_platform/governance/`

See PLATFORM_SERVICES.md for detailed deployment guides.

4. Consumer Layer¶

The consumer layer exposes processed data to end users and downstream systems.

Power BI — Direct Lake mode connects Power BI directly to Delta Lake files in ADLS Gen2 via Databricks SQL endpoints, eliminating data import overhead.
Data Onboarding Portal — Four implementations (PowerApps, React/Next.js, Kubernetes, and python -m cli) sharing a common FastAPI backend (CSA-0066).
REST APIs — Data product APIs exposed through API Management with OAuth2 authentication and rate limiting.
Teams Alerts — Webhook-based notifications for pipeline failures, data quality violations, and anomaly detection alerts.

5. Azure Government Parallel¶

Every component in CSA-in-a-Box is designed to run in Azure Government (FedRAMP High, IL4, IL5). Government deployments use:

Separate Bicep parameter files (deploy/bicep/gov/)
Government-specific endpoints (.us instead of .com)
Compliance tagging (FedRAMP level, FISMA impact, data classification)
OSS alternatives for services not yet available in Gov

See GOV_SERVICE_MATRIX.md for the full service availability matrix.

🔄 Data Flow¶

Batch Data Flow¶

graph LR
    Source["Source"] --> ADF["ADF Copy Activity"]
    ADF --> Bronze["Bronze<br/>(raw Parquet/JSON)"]
    Bronze --> dbtB["dbt Bronze model<br/>(typed, partitioned)"]
    dbtB --> dbtS["dbt Silver model<br/>(validated, deduplicated)"]
    dbtS --> dbtG["dbt Gold model<br/>(business aggregates)"]
    dbtG --> Consumer["Power BI / API<br/>Data Product"]

Each step is dbt run --select tag:<layer> from a single dbt project.

Streaming Data Flow¶

graph LR
    IoT["IoT Device"] --> Hub["IoT Hub"]
    Hub --> EH["Event Hub"]
    EH --> Hot["Hot Path: ADX<br/>(sub-second KQL)"]
    EH --> Warm["Warm Path: Stream Analytics<br/>(windowed aggregation)"]
    EH --> Cold["Cold Path: ADLS Bronze<br/>(Event Hub Capture)"]
    Warm --> PBI["Power BI / ADX"]
    Cold --> dbt["dbt → Gold"]

Data Governance Flow¶

graph LR
    Reg["Source Registration"] --> Scan["Purview Scan"]
    Scan --> Class["Auto-Classification"]
    Class --> Labels["Sensitivity Labels"]
    Labels --> Policies["Access Policies"]
    Policies --> Lineage["Lineage Captured"]
    Lineage --> Market["Data Marketplace Discovery"]
    Market --> Grant["Access Request → Approval → Grant"]

💡 Vertical Examples¶

CSA-in-a-Box includes 10 examples (9 verticals + iot-streaming cross-cutting pattern) that demonstrate end-to-end patterns for real agencies and industries:

Vertical	Directory	Key Patterns
USDA (NASS Agriculture)	`examples/usda/`	API ingestion, crop analytics, dbt medallion
DOT (Transportation)	`examples/dot/`	Safety data, geospatial, FMCSA/NHTSA
USPS (Postal Service)	`examples/usps/`	Address validation, delivery metrics
NOAA (Weather/Climate)	`examples/noaa/`	Weather station streaming, climate analysis
EPA (Environmental)	`examples/epa/`	AQI sensors, compliance monitoring
Commerce (Census/BEA)	`examples/commerce/`	Census data, economic indicators
Interior (USGS/BLM)	`examples/interior/`	Geospatial, land management
Tribal Health (BIA/IHS)	`examples/tribal-health/`	HIPAA, tribal sovereignty, health analytics
Casino Analytics	`examples/casino-analytics/`	Slot telemetry, revenue, Title 31
IoT Streaming	`examples/iot-streaming/`	Generic IoT, real-time, anomaly detection

Each vertical includes seed data generators, dbt models, deployment templates, and domain-specific documentation.

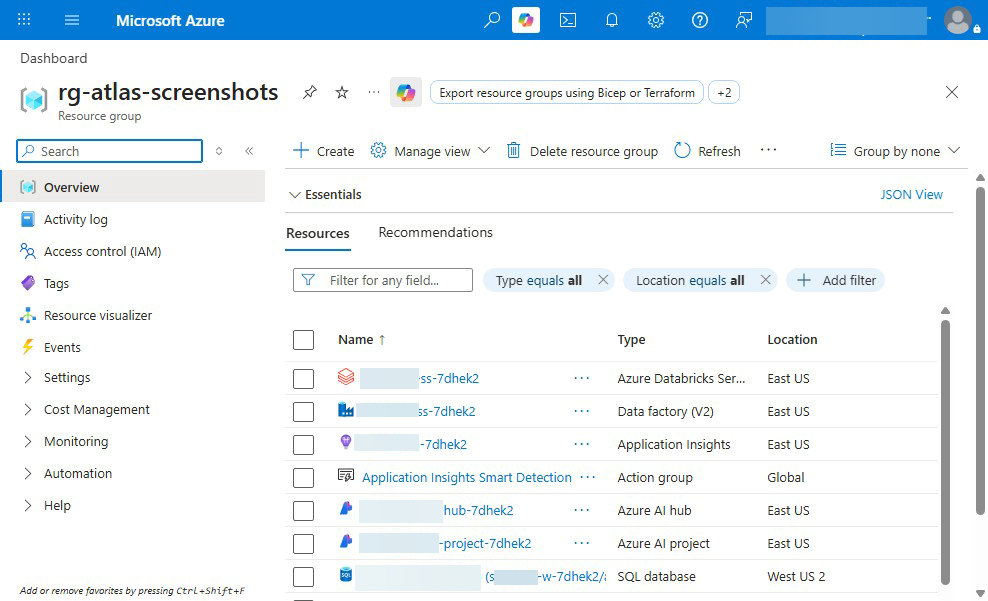

What this looks like once deployed¶

📁 Repository Structure¶

csa-inabox/
├── deploy/                     # Infrastructure as Code
│   ├── bicep/
│   │   ├── landing-zone-alz/  # Azure Landing Zone (Management + Connectivity)
│   │   ├── DMLZ/               # Data Management Landing Zone
│   │   ├── DLZ/                # Data Landing Zone
│   │   ├── gov/                # Azure Government templates
│   │   └── shared/             # Shared Bicep modules
│   ├── terraform/              # Terraform alternative
│   └── scripts/                # Deployment orchestration
│
├── domains/                    # Domain-specific data assets
│   ├── shared/                 # Core domain (customers, orders, products)
│   ├── finance/                # Finance domain (invoices, payments)
│   ├── inventory/              # Inventory domain (stock, warehouses)
│   └── sales/                  # Sales domain (orders, revenue)
│
├── examples/                   # Vertical implementations
│   ├── usda/                   # USDA agriculture analytics
│   ├── dot/                    # DOT transportation safety
│   ├── noaa/                   # NOAA weather & climate
│   ├── epa/                    # EPA environmental monitoring
│   ├── iot-streaming/          # Generic IoT & streaming patterns
│   └── ...                     # 5 more verticals
│
├── csa_platform/                # Fabric-equivalent platform services
│   ├── unity_catalog_pattern/  # Databricks Unity Catalog + ADLS Gen2 data lake
│   ├── data_activator/         # Event-driven alerting
│   ├── semantic_model/         # Power BI semantic models over Databricks SQL
│   ├── data_marketplace/       # Data product marketplace
│   ├── metadata_framework/     # Auto-pipeline generation
│   ├── ai_integration/         # RAG, enrichment, model serving
│   ├── functions/              # Consolidated Azure Functions (validation, aiEnrichment, eventProcessing, secretRotation)
│   └── oss_alternatives/       # OSS for Gov gaps
│
├── portal/                     # Data onboarding portal (3 frontends)
│   ├── shared/                 # Shared FastAPI backend
│   ├── react-webapp/           # React/Next.js frontend
│   ├── powerapps/              # Power Apps frontend
│   └── kubernetes/             # AKS-deployed frontend
│
├── governance/                 # Cross-cutting governance
│   ├── common/                 # Logging, validation, contracts
│   ├── contracts/              # Data product contract framework
│   ├── purview/                # Catalog, glossary, classification
│   └── dataquality/            # Great Expectations quality checks
│
├── monitoring/                 # Observability
│   ├── grafana/dashboards/     # Pipeline, quality, infra dashboards
│   └── alerts/                 # Budget and operational alert templates
│
├── docs/                       # Documentation
├── tests/                      # Unit and integration tests
└── scripts/                    # Utility scripts

⚙️ Primary Tech Choices¶

This table is a cheat sheet of the default pick for each concern. For branching decisions with scenario-specific tradeoffs (cost, latency, compliance, skill match, anti-patterns), see the 8 decision trees at docs/decisions/ (machine-readable YAML source of truth at decision-trees/).

Concern	Primary Choice	Alternative	Rationale
Batch Orchestration	Azure Data Factory	Airflow on AKS	ADF is native, metadata-driven
Streaming	Event Hubs + ADX	Kafka on AKS	Event Hubs has Kafka API compatibility
Transformation	dbt Core + Databricks	Synapse Spark	dbt provides testability and lineage
Storage	ADLS Gen2 (Delta)	Iceberg on ADLS	Delta has best Databricks integration
Governance	Microsoft Purview	Apache Atlas	Purview integrates with Azure ecosystem
ML / AI	Azure ML + OpenAI	MLflow + Ollama	Azure ML for managed, OSS for Gov
Real-time Queries	Azure Data Explorer	ClickHouse on AKS	ADX is native, managed
API Gateway	API Management	Kong on AKS	APIM integrates with Entra ID
Secrets	Key Vault	HashiCorp Vault	Key Vault is native to Azure
IaC	Bicep	Terraform	Bicep is Azure-native, Terraform for multi-cloud

🔒 Security Architecture¶

All deployments enforce:

Network isolation — Private endpoints for all PaaS services, no public access
Identity-based access — Managed identities, no shared keys in production
Encryption — At rest (platform-managed or CMK) and in transit (TLS 1.2+)
RBAC — Least-privilege role assignments per domain
Audit logging — Diagnostic settings to Log Analytics workspace
Data classification — Automated PII detection and sensitivity labeling via Purview

🚀 Next Steps¶

GETTING_STARTED.md — Prerequisites and deployment walkthrough
QUICKSTART.md — 60-minute hands-on tutorial
PLATFORM_SERVICES.md — Platform component deep-dive
GOV_SERVICE_MATRIX.md — Azure Government compatibility
Fabric migration path — See the fabric-vs-databricks-vs-synapse decision tree, ADR-0010 (positioning), and the Palantir migration playbook in migrations/ for guidance on when to stay on CSA-in-a-Box, when to adopt Microsoft Fabric, and how components compose into a Fabric migration.
Supercharge Microsoft Fabric — For hands-on Fabric tutorials, feature guides, best practices, and POC materials, see the Supercharge Microsoft Fabric companion site.

See also:

← Previous: Production Checklist
→ Next: Platform Services
⌂ Index: Documentation home
